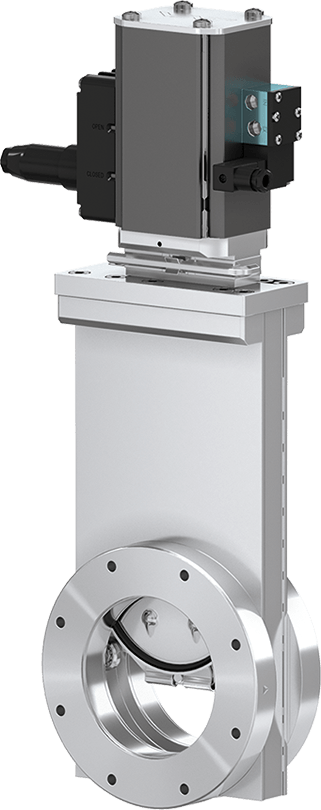

11.1 HV Gate Valve

  • 11136-CE24

Series

11.1 HV Gate Valve

Article number
11136-CE24
1 × 10-8 mbar to 1.6 bar (abs)

The Standard for High Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.6 bar (abs)
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Conductance
600 ls⁻¹
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Close open time
1 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature solenoid
≤ 50 °C
Max. temperature position indicator
≤ 80 °C
Weight
9 kg / 20 lbs

11.1 HV Gate Valve 11136-CE24 3D CAD File

ZIP 695 KB Download

11.1 HV Gate Valve 11136-CE24 2D Dimension Drawing

PDF 210 KB Download

11.1 HV Gate Valve 11136-CE24 Manual

PDF 1 MB Download

11.1 HV Gate Valve 11136-CE24 Product Datasheet

PDF 160 KB Download
