Series

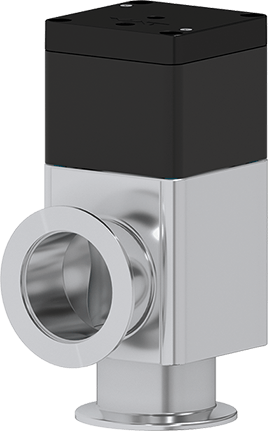

29.0 HV Angle Valve with Soft-Pump Function

  • 29038-QA11
View dimensions

Series

29.0 HV Angle Valve with Soft-Pump Function

Article number
29038-QA11
1 × 10-8 mbar to 1.2 bar (abs)

Pumping, Venting Without Turbulence or Pressure Pulses (DN 25 - 80)

  • Technical data
  • Downloads
Size
DN 80 (3")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
200 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.112 l
Close open time
0.7 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Weight
3.9 kg / 8.6 lbs
