For Especially Sensitive Production Processes

The main requirement of a valve with soft-pump function is to avoid turbulence during valve opening as this could negatively affect the process, e.g. through particle activation. In addition, rapid pressure changes as a result of high differential pressure during valve opening could cause sudden condensation effects, which could also adversely affect process parameters. The 29.0 HV Angle Valve with Soft-Pump Function avoids this.

The soft-pump function of the 29.0 is provided by an adjustable orifice in the closing plate. The adjustment wheel in the valve cover allows fine tuning of the soft pump effect. This ensures optimum calibration to the desired process parameters.

To enable simple and precise adjustment as well as easy resetting, the wheel is provided with 11 position markings. These facilitate the reproducibility of a setting as well as copying the setting to other valves that are to operate with the same setting.

The series is available also as inline valve version (29.1).

Tested in thousands of demanding applications under various process conditions, the 29.0 series has proven its outstanding “soft” acting performance.

A positive side effect of the soft-pump function is that any pulse sound is reduced or avoided. This results in a quieter production/operation environment.

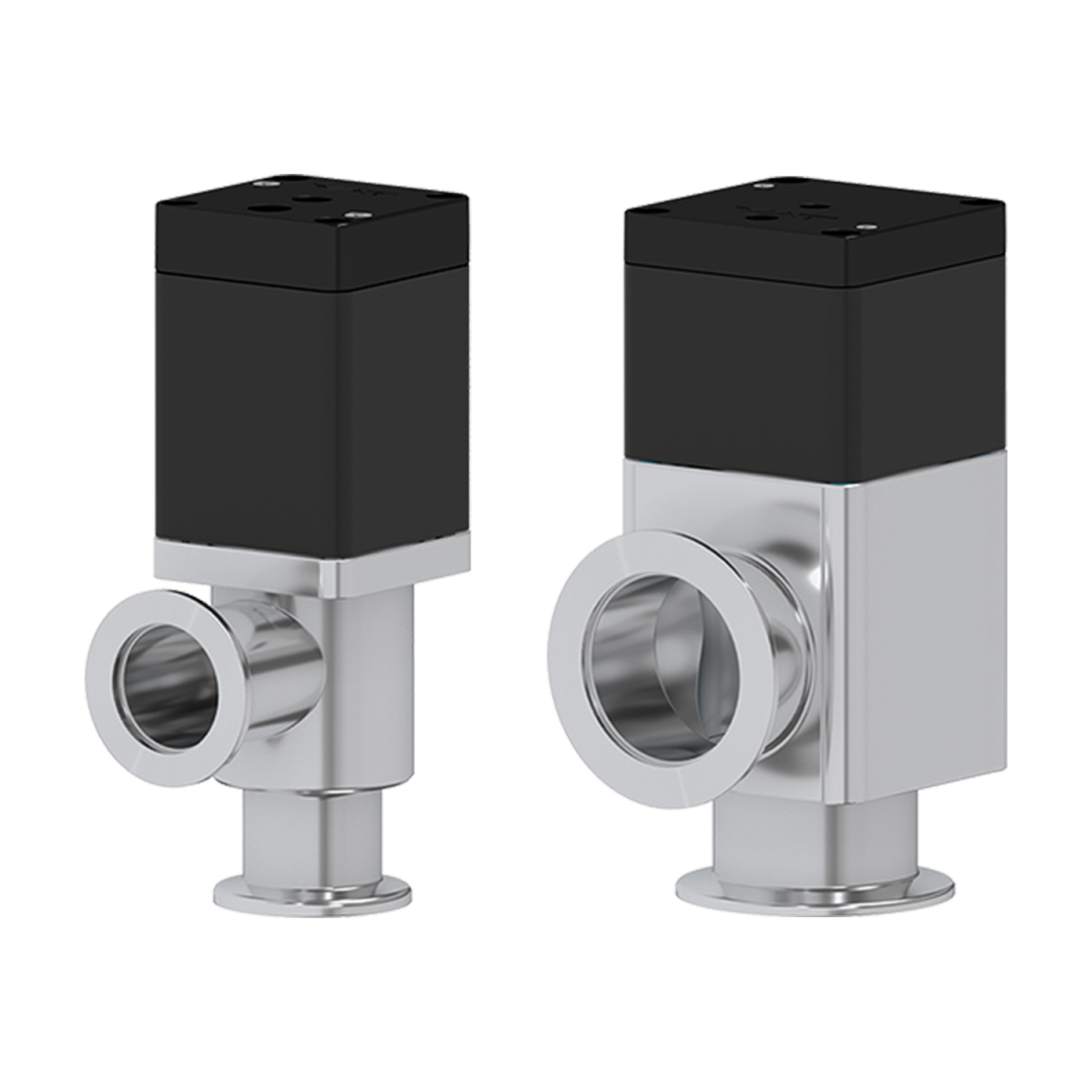

VAT 29.0 HV Angle Valve with Soft-Pump Function - DN: 25
DN: 25
VAT 29.0 HV Angle Valve with Soft-Pump Function - DN: 50
DN: 50
VAT 29.0 HV Angle Valve with Soft-Pump Function - Closed
Closed
VAT 29.0 HV Angle Valve with Soft-Pump Function - Open
Open

The 29.0 HV Angle Valve with Soft-Pump Function is based on a robust and reliable core design. The pneumatic actuator is single-acting, meaning that a closing spring closes the valve when pneumatic pressure is not applied.  The series is available in sizes DN 25 – 80mm (1"- 3") either in aluminum or stainless steel.

Standard options for flange connections are ISO-KF and ISO-K, but customized flanges can also be integrated. An optical position indicator and an electrical position output signal are standard.

Key features of the 29.0 HV Angle Valve with Soft-Pump Function

Features:

  • Soft-pump function to avoid condensation and particle activation
  • Easy reproduction of soft-start settings
  • Full functionality even at high differential pressure

Benefits:

  • Avoids turbulence or pressure pulses
  • Outstanding reliability
  • Long maintenance-free operating time
  • Quick and easy minimal maintenance

Technical data
Sizes

DN 25 (1’’) DN 40 (1½’’),
DN 50 (2’’), DN 63 (2½"), DN 80 (3"),
Actuator Pneumatic   Single acting with closing spring (NC)
Body Material     Aluminum or Stainless Steel
Feedthrough     Bellows
Standard Flanges     ISO-KF, ISO-K
Leak Rate Valve Body   < 1 × 10-9 mbar ls-1
  Valve Seat   < 1 × 10-9 mbar ls-1
Pressure Range   DN 25 – 50
DN 63 – 80		 1 × 10-8 mbar to 1.2 bar (abs)
1 × 10-8 mbar to 4 bar (abs)
Differential Pressure on the Plate In Opening Direction   ≤ 1.2 bar
  In Closing Direction DN 25 – 50
DN 63 – 80		 ≤ 1.2 bar
≤ 4.0 bar
Differential Pressure at Opening     ≤ 1 bar
Temperature Valve Body   ≤ 150 °C
  Actuator DN 25 – 50
DN 63 – 80		 ≤ 120 °C
≤ 80 °C
  Solenoid Valve   ≤ 80 °C
  Position Indicator   ≤ 80 °C
Material Main Valve Body: Aluminum DN 25 – 63

DN 80		 EN AW-6060 (3.3206), EN AW-6061 (3.3211),
EN AW-6063 (3.3206), EN AW-6082 (3.2315)
EN AC-42000
  Main Valve Body: Stainless Steel   AISI 304 (1.4301) , AISI 316L (1.4404)
  Soft-Pump Valve Body   EN AW-6060 (3.3206), EN AW-6061 (3.3211),
EN AW-6063 (3.3206), EN AW-6082 (3.2315)
  Plate   AISI 316L (1.4404, 1.4435) or AISI 304L (1.4306)
  Bellows   AISI 316L (1.4404, 1.4435), AISI 316Ti (1.4571)
Seal Bonnet, Plate   FKM (Viton®)
Mounting Position     Any
Solenoid Valve     24 VDC, 2.5 W (others on request)
Position Indicator: Contact Rating Voltage   5 – 50 VAC/DC
  Current   5 – 100 mA
Valve Position Indication     Visual (Mechanical)
