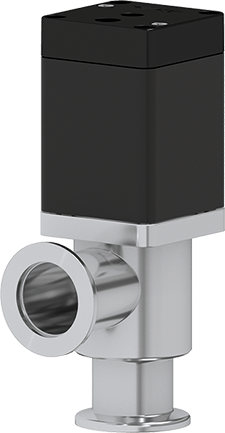

29.0 HV Angle Valve with Soft-Pump Function

View dimensions

Series

29.0 HV Angle Valve with Soft-Pump Function

Article number

29028-KA31

1 × 10^-8 mbar to 1.2 bar (abs)

Pumping, Venting Without Turbulence or Pressure Pulses (DN 25 - 80)

Technical data
Downloads

Size

DN 25 (1")

Flange

ISO-KF

Material

Aluminum

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

14 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4.5 bar / 65 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.011 l

Close open time

0.20 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature solenoid

≤ 80 °C

Weight

0.8 kg / 1.76 lbs
