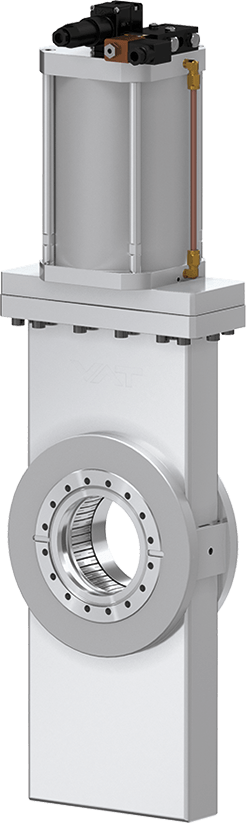

XHV RF All-Metal Gate Valve

Size

DN 40 (1 ½")

Flange

CF-F (metric threads)

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Visual (Mechanical), 80° C

Solenoid

Yes

Pressure Min.

XHV

Pressure Max.

2.0 bar (abs)

Differential Pressure on Plate

≤ 1 bar

Differential Pressure at opening

≤ 0.5 bar

Conductance

100 ls⁻¹

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.26 l

Max. temperature valve body

≤ 200 °C

Max. Temperature Actuator

≤ 200 °C

Max. temperature position indicator

≤ 80 °C (Option: 200 °C)

Max. temperature solenoid

≤ 80 °C

Close open time

≤ 2.0 sec

Weight

14 kg / 31 lbs

Add-Ons for Your Product

Valve

Customer specific flange

RF shield

Customer specified RF aperature

Antimagnetic version

Additional ports

Waveguide

Actuator

Different solenoid specification

Radiation resistant upto 106 Gy (bakeable max. 140 °C, max. 100h)

Manual actuator bakeable

Position indicator

Double position indicator for "open" and "close"

Increased temperature range

Series

47.2 XHV RF All-Metal Gate Valve
