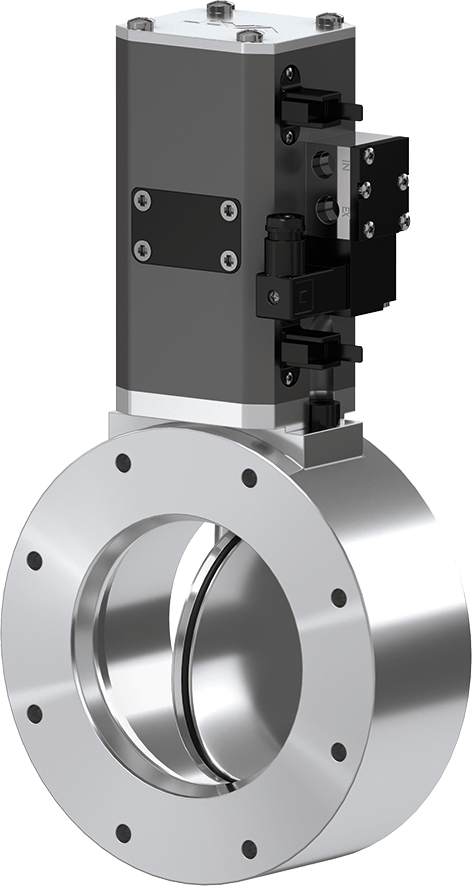

20.3 VATTERFLY Valve

  • 20336-CE14
View dimensions

Series

20.3 VATTERFLY Valve

Article number
20336-CE14
1 × 10-8 mbar to 2 bar (abs)

Reliable Isolation in Contaminating and Aggressive Vacuum Processes

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
550 ls⁻¹
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.5 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.04 l
Close open time
0.4 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 120 °C
Weight
4.6 kg / 10.14 lbs
Add-Ons for Your Product
Valve
Actuator
Soft-Pump Function

20.3 VATTERFLY Valve 20336-CE14 3D CAD File

ZIP 325 KB Download

20.3 VATTERFLY Valve 20336-CE14 Product Datasheet

PDF 35 KB Download

20.3 VATTERFLY Valve 20336-CE14 Manual

PDF 831 KB Download

20.3 VATTERFLY Valve 20336-CE14 2D Dimension Drawing

PDF 249 KB Download
