23.0 Valve Mechanism and Pump-Out System

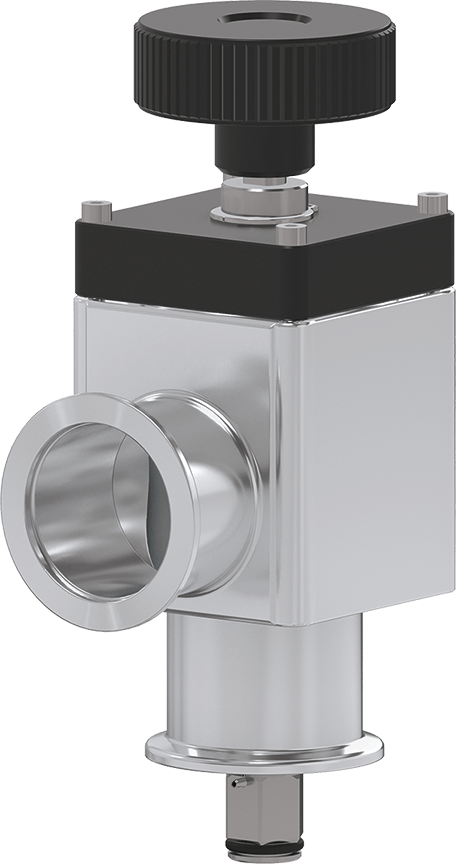

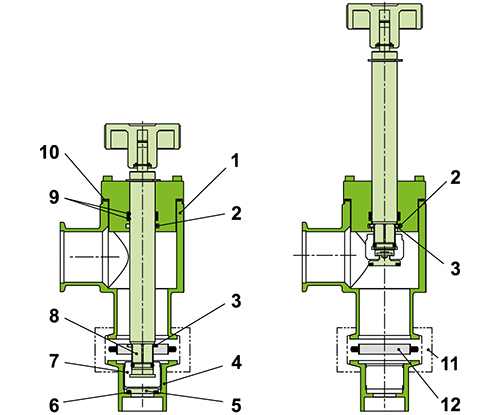

  • 23032-KA01
View dimensions

Series

23.0 Valve Mechanism and Pump-Out System

Article number
23032-KA01
1 × 10-8 mbar to 1 bar (abs)

For Infrequently Pumped Vacuum Vessels or Gas Isolation

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.5 bar
Differential Pressure on Plate
≤ 1 bar
Differential Pressure at opening
≤ 0.005 bar
Conductance
1.8 ls⁻¹
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 50 °C
Weight
1.9 kg / 4.19 lbs

23.0 Valve Mechanism and Pump-Out System 23032-KA01 3D CAD File

ZIP 146 KB Download

23.0 Valve Mechanism and Pump-Out System 23032-KA01 2D Dimension Drawing

PDF 163 KB Download

23.0 Valve Mechanism and Pump-Out System 23032-KA01 Manual

PDF 655 KB Download

23.0 Valve Mechanism and Pump-Out System 23032-KA01 Product Datasheet

PDF 17 KB Download
