Series

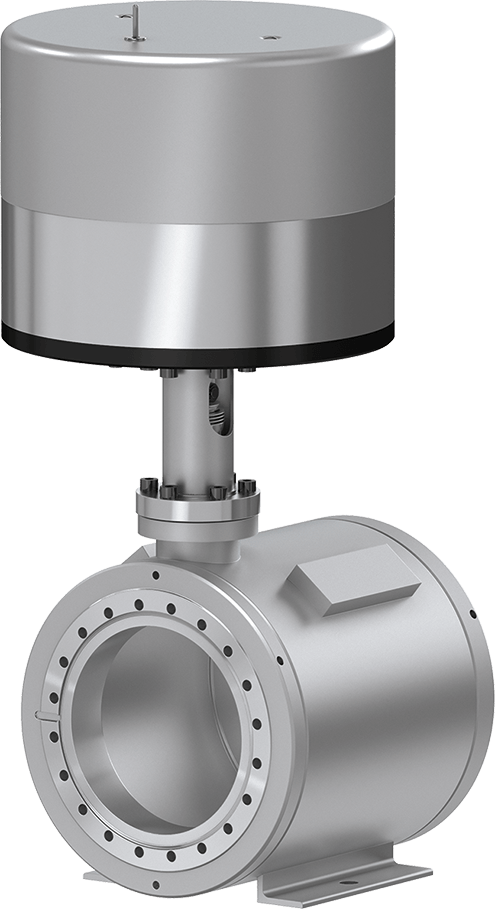

75.0 UHV Fast Closing Valve

  • 75044-CE44
View dimensions

Series

75.0 UHV Fast Closing Valve

Article number
75044-CE44
1 × 10-10 mbar to 2 bar (abs)

Protection of Accelerators and Storage Rings from Air Inrush

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-10 mbar
Pressure Max.
1.2 bar (abs)
Conductance
1700 ls⁻¹
Differential Pressure on Plate
≤ 0.5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
8 bar / 116 psi
Close open time
0.023 s / 7 s
Max. temperature valve body
≤ 200 °C
Max. Temperature Actuator
≤ 50 °C
Weight
36 kg / 79.5 lbs
Add-Ons for Your Product
Valve

75.0 UHV Fast Closing Valve 75044-CE44 3D CAD File

ZIP 315 KB Download

75.0 UHV Fast Closing Valve 75044-CE44 Product Datasheet

PDF 43 KB Download

75.0 UHV Fast Closing Valve 75044-CE44 Manual

PDF 588 KB Download

75.0 UHV Fast Closing Valve 75044-CE44 2D Dimension Drawing

PDF 279 KB Download
