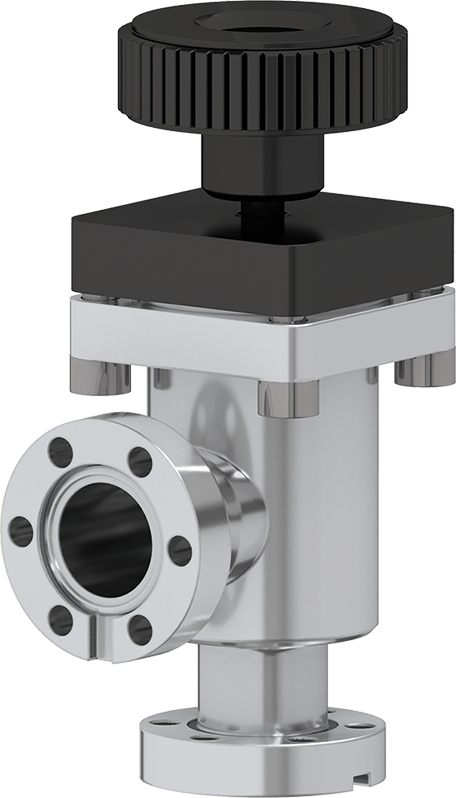

28.4 UHV Angle Valve

  • 28432-GE01
View dimensions

Series

28.4 UHV Angle Valve

Article number
28432-GE01
5 × 10-10 mbar to 5 bar (abs)

Outstandingly Low Outgassing Performance

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-10 mbar
Pressure Max.
5.0 bar (abs)
Conductance
45 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 150 °C
Weight
1.5 kg / 3.31 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

28.4 UHV Angle Valve 28432-GE01 2D Dimension Drawing

PDF 152 KB Download

28.4 UHV Angle Valve 28432-GE01 Product Datasheet

PDF 20 KB Download

28.4 UHV Angle Valve 28432-GE01 3D CAD File

ZIP 162 KB Download

28.4 UHV Angle Valve 28432-GE01 Manual

PDF 248 KB Download
