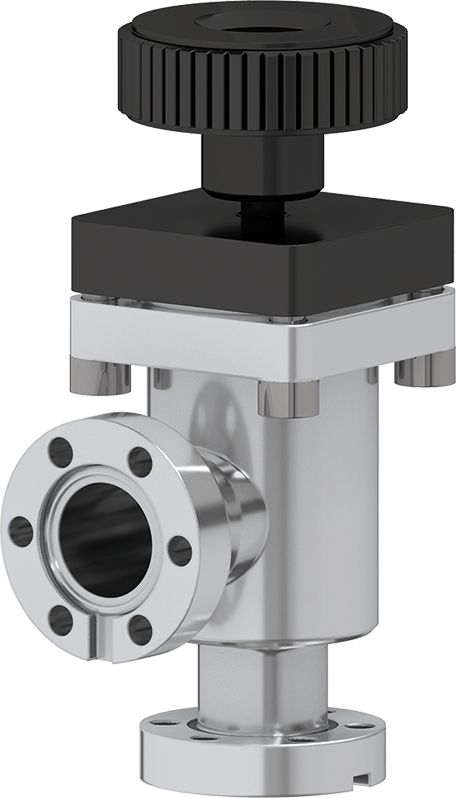

28.4 UHV Angle Valve

  • 28424-GE01
View dimensions

Series

28.4 UHV Angle Valve

Article number
28424-GE01
5 × 10-10 mbar to 5 bar (abs)

Outstandingly Low Outgassing Performance

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-10 mbar
Pressure Max.
5.0 bar (abs)
Conductance
5 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
0.3 kg / 0.66 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

28.4 UHV Angle Valve 28424-GE01 2D Dimension Drawing

PDF 143 KB Download

28.4 UHV Angle Valve 28424-GE01 Product Datasheet

PDF 20 KB Download

28.4 UHV Angle Valve 28424-GE01 3D CAD File

ZIP 122 KB Download

28.4 UHV Angle Valve 28424-GE01 Manual

PDF 248 KB Download
