Series

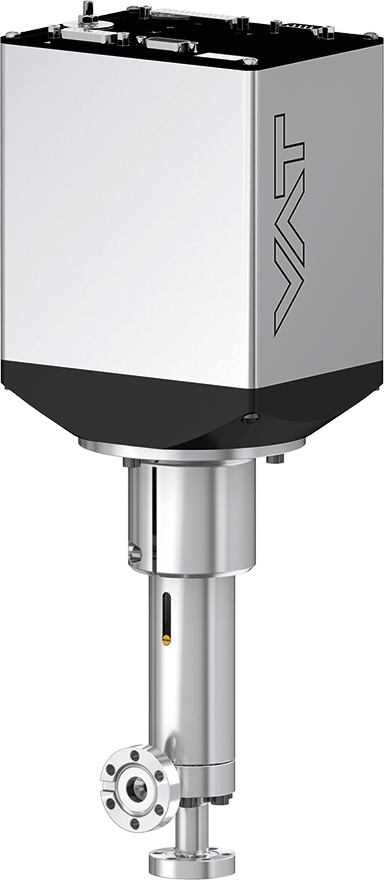

59.0 UHV All-Metal Variable Leak Valve

  • 59024-GEGG
View dimensions

Series

59.0 UHV All-Metal Variable Leak Valve

Article number
59024-GEGG
UHV to 10 bar (abs)

For Extreme UHV Requirements

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
RS232 interface / 1 sensor
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-10 mbar
Pressure Max.
10 bar (abs)
Conductance
0.05 ls⁻¹
Close open time
3.5 s
Max. temperature valve body
≤ 300°C
Max. Temperature Actuator
≤ 50 °C
Controller Configuration
Basic Version / Cluster Slave
Controller interface + sensors
RS232 interface / 1 sensor
Weight
2.5 kg / 5.51 lbs

59.0 UHV All-Metal Variable Leak Valve 59024-GEGG 2D Dimension Drawing

PDF 438 KB Download

59.0 UHV All-Metal Variable Leak Valve 59024-GEGG Manual

PDF 1 MB Download

59.0 UHV All-Metal Variable Leak Valve 59024-GEGG Product Datasheet

PDF 28 KB Download

59.0 UHV All-Metal Variable Leak Valve 59024-GEGG 3D CAD File

ZIP 1 MB Download
