Series

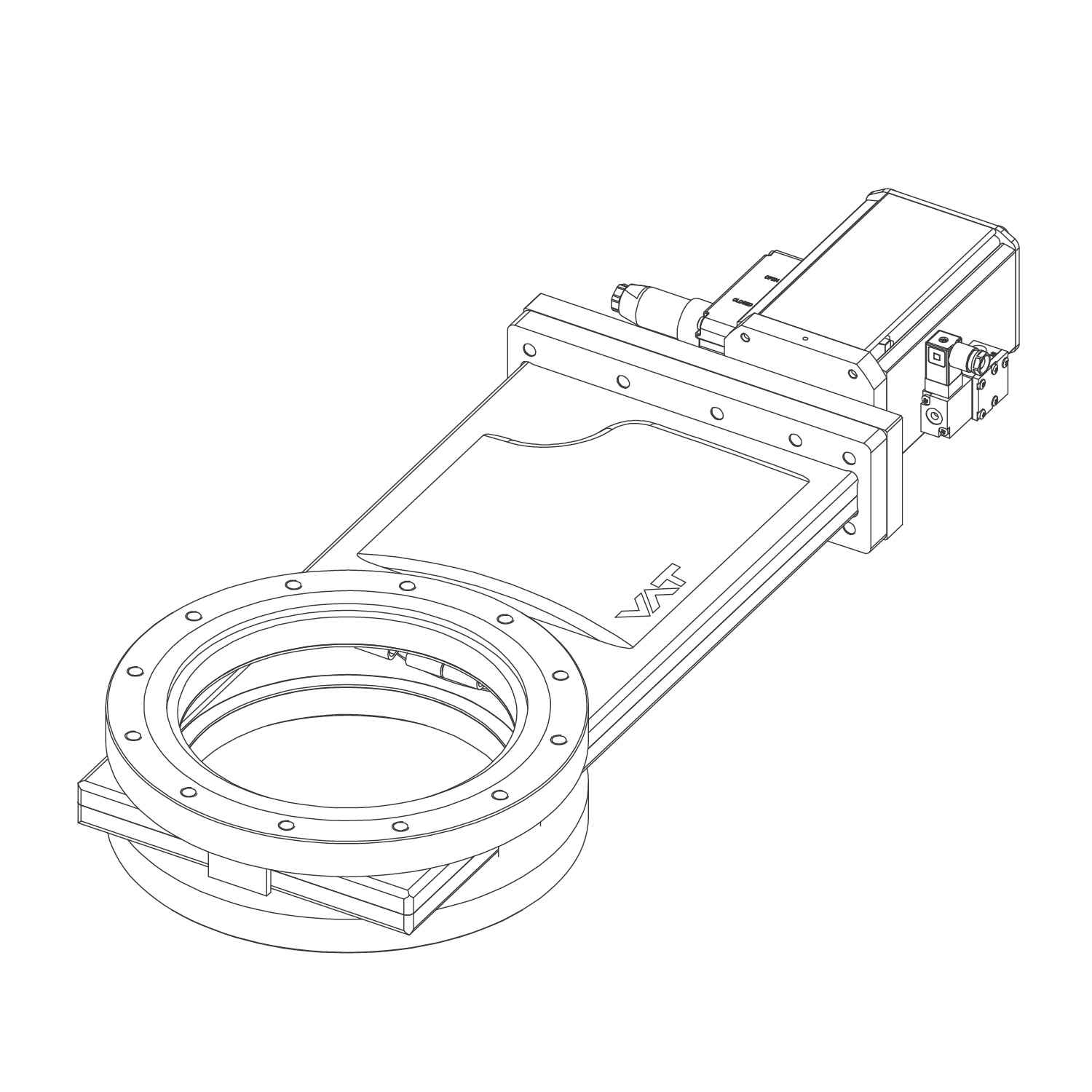

ITER Type 41 UHV Gate Valve

  • 10844-PE24-BUD1

Series

ITER Type 41 UHV Gate Valve

Article number
10844-PE24-BUD1

(DN 53 - 160)

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.5 bar
Differential Pressure on Plate
≤ 1.1 bar
Differential Pressure at opening
≤ 30 mbar
Conductance
5880 ls⁻¹
Cycles until first service
10 000
Bake-Out Temperature
Valve Body
≤ 150 °C (bake-out max. 24h)
Bake-Out Temperature
≤ 150 °C
Bake-Out Temperature
≤ 150 °C
Heating and Cooling Rate
≤ 40 °C h-1
Seal
Seal
Metal
Seal
EPDM
Seal
EPDM
Mounting Position
Any
Radiation Resistance
106 Gy (108 rad)
Maximum magnetic field levels
≤ 150 mT
Close open time
1.5 s
Weight
19.4 kg / 42.8 lbs

ITER Type 41 UHV Gate Valve 10844-PE24-BUD1 3D CAD File

ZIP 377 KB Download

ITER Type 41 UHV Gate Valve 10844-PE24-BUD1 2D Dimension Drawing

PDF 170 KB Download

ITER Type 41 UHV Gate Valve 10844-PE24-BUD1 Manual

PDF 488 KB Download

ITER Type 41 UHV Gate Valve 10844-PE24-BUD1 Product Datasheet

PDF 58 KB Download
