Series

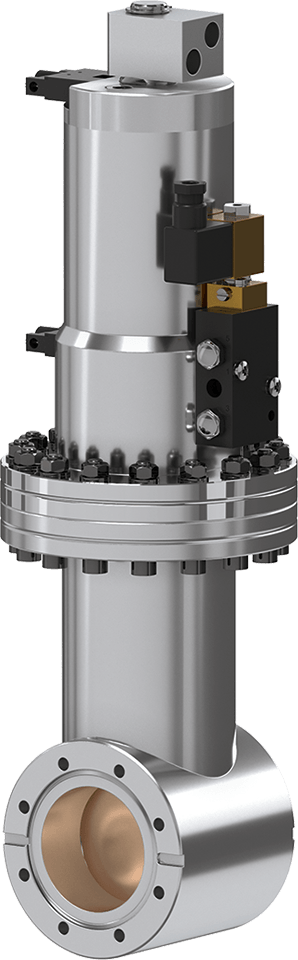

79.0 UHV Beam Stopper

  • 79040-CE44
View dimensions

Series

79.0 UHV Beam Stopper

Article number
79040-CE44
UHV to 1 bar (abs)

For Particle Accelerators, Synchrotrons and Other Beam Sources

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
CF-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure Min.
XHV
Pressure Max.
1.0 bar (abs)
Conductance
1220 ls⁻¹
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.49 l
Close open time
2 s
Max. temperature valve body
≤ 250 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Weight
23 kg / 50.71 lbs
Add-Ons for Your Product
Valve
Position indicator

79.0 UHV Beam Stopper 79040-CE44 3D CAD File

ZIP 361 KB Download

79.0 UHV Beam Stopper 79040-CE44 Product Datasheet

PDF 35 KB Download

79.0 UHV Beam Stopper 79040-CE44 Manual

PDF 931 KB Download

79.0 UHV Beam Stopper 79040-CE44 2D Dimension Drawing

PDF 182 KB Download
