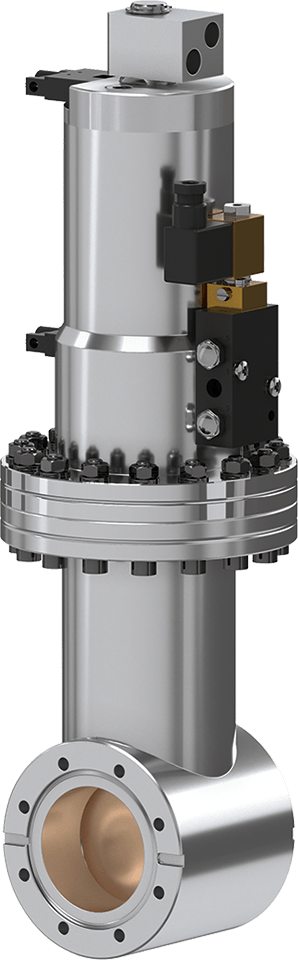

79.0 UHV Beam Stopper

  • 79036-CE24
View dimensions

Series

79.0 UHV Beam Stopper

Article number
79036-CE24
UHV to 1 bar (abs)

For Particle Accelerators, Synchrotrons and Other Beam Sources

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure Min.
XHV
Pressure Max.
1.0 bar (abs)
Conductance
335 ls⁻¹
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.33 l
Max. temperature valve body
≤ 250 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
16 kg / 35.27 lbs
Add-Ons for Your Product
Valve
Position indicator

79.0 UHV Beam Stopper 79036-CE24 3D CAD File

ZIP 304 KB Download

79.0 UHV Beam Stopper 79036-CE24 Product Datasheet

PDF 36 KB Download

79.0 UHV Beam Stopper 79036-CE24 Manual

PDF 931 KB Download

79.0 UHV Beam Stopper 79036-CE24 2D Dimension Drawing

PDF 211 KB Download
