Series

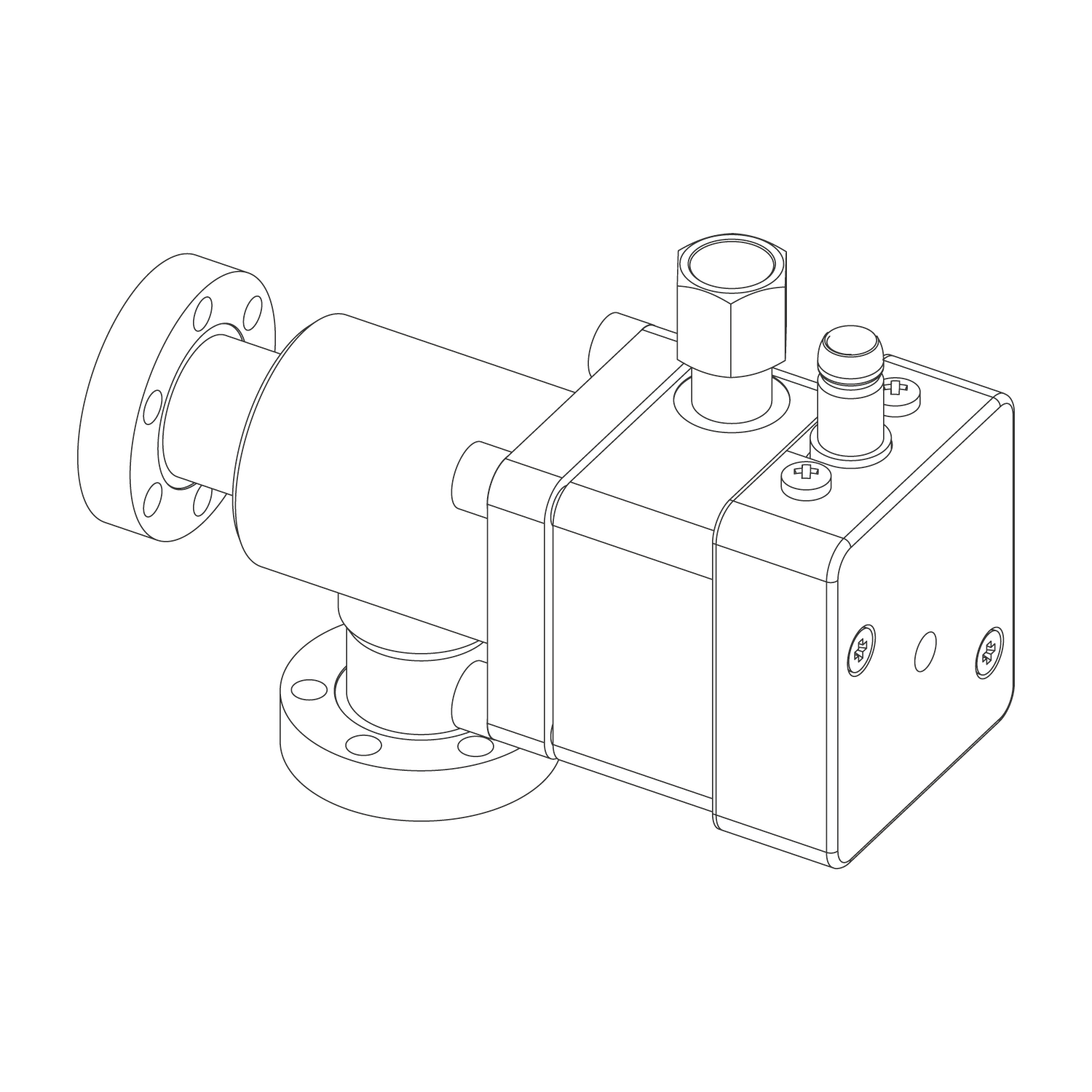

ITER Type 21 UHV Angle Valve

  • 28428-KE21-CQD1

Series

ITER Type 21 UHV Angle Valve

Article number
28428-KE21-CQD1

  • Technical data
  • Downloads
Size
DN 25 (1")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.5 bar
Differential Pressure on Plate
≤ 1.1 bar
Differential Pressure at opening
≤ 1 bar
Conductance
14 ls⁻¹
Cycles until first service
10 000
Bake-Out Temperature
Valve Body
≤ 150 °C
Bake-Out Temperature
≤ 150 °C
Bake-Out Temperature
≤ 120 °C
Seal
Seal
Metal
Seal
EPDM
Seal
EPDM
Mounting Position
Any
Radiation Resistance
106 Gy (108 rad)
Maximum magnetic field levels
≤ 150 mT
Close open time
≤ 0.2 sec
Weight
0.65 kg / 1.433 lbs

ITER Type 21 UHV Angle Valve 28428-KE21-CQD1 3D CAD File

ZIP 77 KB Download

ITER Type 21 UHV Angle Valve 28428-KE21-CQD1 2D Dimension Drawing

PDF 126 KB Download

ITER Type 21 UHV Angle Valve 28428-KE21-CQD1 Manual

PDF 283 KB Download

ITER Type 21 UHV Angle Valve 28428-KE21-CQD1 Product Datasheet

PDF 49 KB Download
