Series

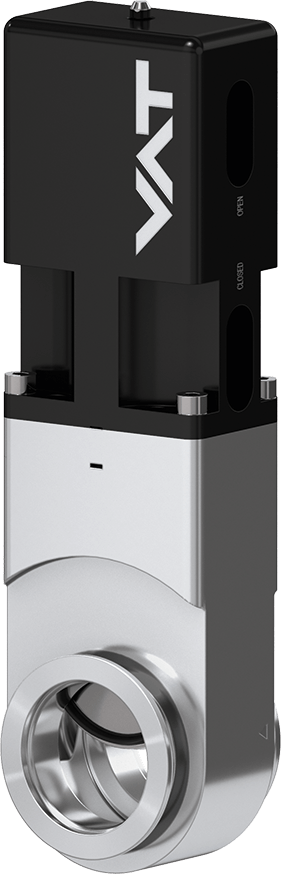

01.2 Mini Gate Valve

View dimensions

Series

01.2 Mini Gate Valve

Article number

01228-KA24

1 × 10^-7 mbar to 1 bar (abs)

The General Purpose Isolation Valve

Technical data
Downloads

Size

DN 25 (1")

Flange

ISO-KF

Material

Aluminum

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-⁷ mbar

Pressure Max.

2.0 bar (abs)

Conductance

34 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

4.5 bar / 65 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.03 l

Close open time

1 s

Max. temperature valve body

≤ 100 °C

Max. Temperature Actuator

≤ 80 °C

Max. temperature position indicator

≤ 80 °C

Weight

0.8 kg / 1.76 lbs

Separated Actuator

Pneumatic actuator

Add-Ons for Your Product

Valve

Customer specific flange

Actuator

Different solenoid specification
