Series

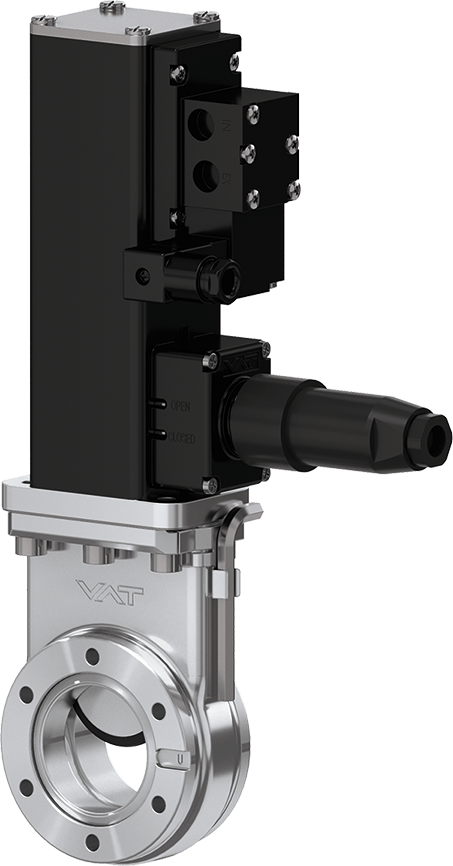

01.0 Mini UHV Gate Valve

Series

01.0 Mini UHV Gate Valve

Article number

01032-KE14

1 × 10^-10 mbar to 2 bar (abs)

The General Purpose Isolation Valve for Demanding Applications

Technical data
Downloads

Size

DN 40 (1 ½")

Flange

ISO-KF

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

2.0 bar (abs)

Conductance

160 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

5 bar / 73 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.06 l

Close open time

0.7 s

Max. temperature valve body

≤ 250 °C

Max. Temperature Actuator

≤ 200 °C

Max. temperature position indicator

≤ 80 °C

Weight

2.2 kg / 4.85 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Insert version

Additional ports

Gate

With window

With fixations for orifices

With fixations for foils

Alternative sealing materials

Actuator

Different solenoid specification

Position indicator

High temperature position indicator
