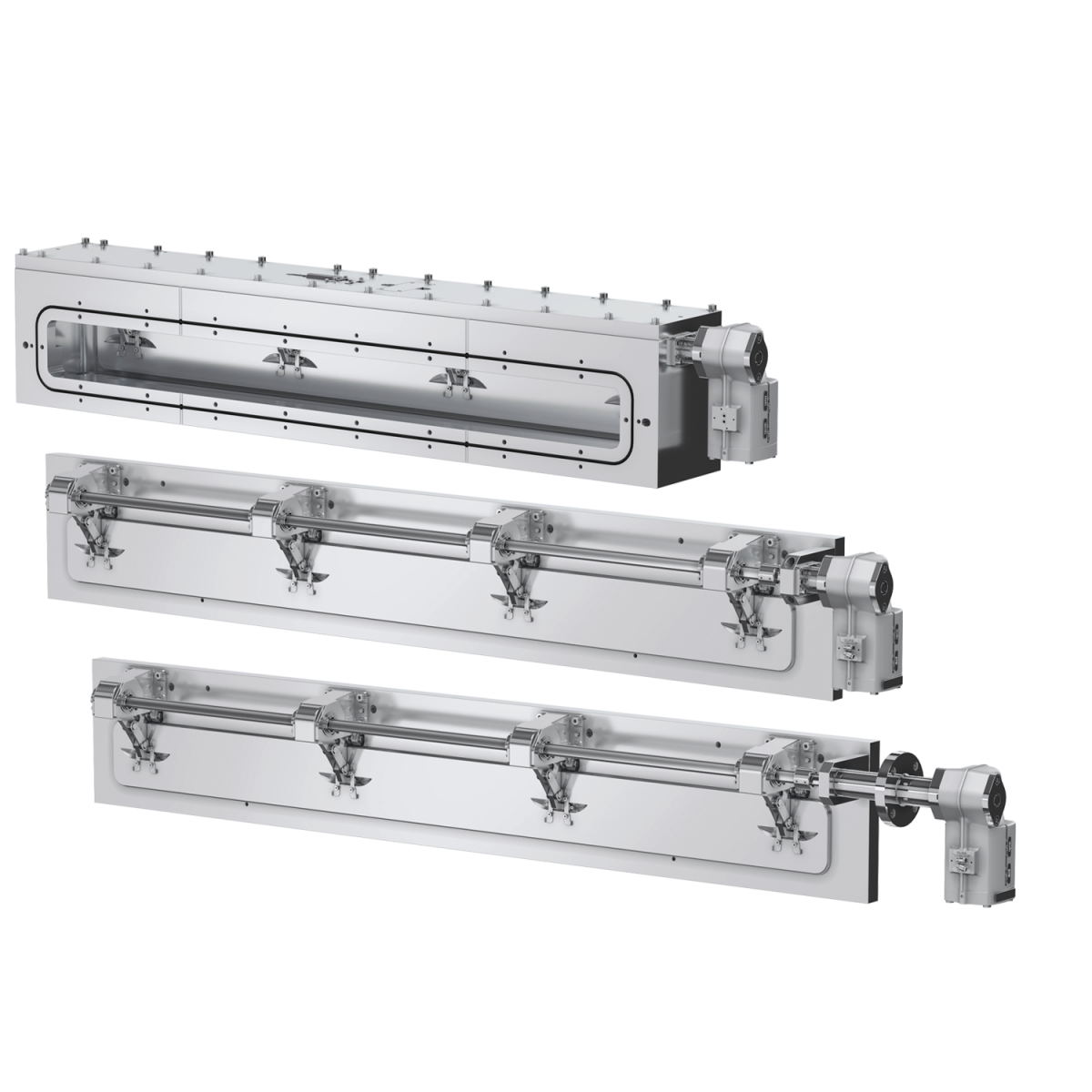

06.8 Large Transfer Valve / Insert / Door with FLAPVAT
High Performance for PV and Large Coating Systems
Specify your product
Fastest Transfer Valve in Class
The 06.8 Large Transfer Valve / Insert / Door sets new standards for large coating systems such as display or photovoltaic panel production in terms of cycle time. With its optimized single-motion design, FlapVAT, the plate can rotate in one simplified rotation motion. This allows an exceptionally fast open/close cycle time of 1.2 – 2 s depending on the plate size, making it the fastest large transfer valve in its class.
The FlapVAT system also provides an integrated failsafe function. In the event of power down and loss of compressed dry air the valve remains mechanically locked in its close position.
To maintain its speed performance and a reliable sealing function over a long, uninterrupted production cycle, the 06.8 series has some additional key features. One is an adaptive leakage prevention. A special “Soft Gate Design” compensates for thermal chamber deformation and with it any leakage risk.
Furthermore, a special heat shield attached to the plate prevents heat transfer into the valve body or in the adjusting process chamber. The shield can also eliminate the need for additional water cooling.
The 06.8 can be configured to operate against full differential pressure on both sides.
The series is designed for high and long uninterrupted production cycles - up to one million cycles - under clean, unheated conditions. Installation in top or bottom orientations is possible.
Downtime for maintenance or repair is not just an annoyance, it is a cost and it reduces output. The 06.8 maximizes uptime by design. Two key features characterize this: a robust design which provides reliable performance under varying process conditions and an extended maintenance cycle with only basic maintenance requirements. Both increase the effective uptime.
If maintenance is required, it easily can be aligned with the maintenance schedule of the production system. A maintenance exchange of all moving parts, if required, can be performed very quickly, meaning it would not result in system maintenance downtime.
The 06.8 is available as a valve, an insert or an atmospheric (ATM) door. With various design options, the 06.8 series can be customized to a wide range of requirements. A solenoid valve for impulse actuation, pneumatic locking for open gate position, water-cooling and a variety of material options are just some of the customizing options.
Key features of the 06.8 Large Transfer Valve / Insert / Door FlapVAT
Features:
- Outstandingly fast opening and closing times
- Adaptive leakage prevention
- Reliable under hazard gases and high temperatures
- Locked in emergency conditions
- Extended lifetime
Benefits:
- High Reliability
- High uptime, low maintenance
- Stable, high cycle performance
- Low cost of ownership
Technical data
| Sizes | Up to 100 ×3000 mm (3.94" ×118.11") | ||
|---|---|---|---|
| Actuator | Pneumatic | Double acting with position indicator | |
| Body Material | Aluminum or Stainless Steel | ||
| Feedthrough | Rotary Feedthrough | ||
| Leak Rate | Valve Body | < 1 × 10-7 mbar ls-1 | |
| Valve Seat | < 1 × 10-5 mbar ls-1 | ||
| Differential Pressure on the Gate | In closing direction | ≤ 1 bar | |
| In opening direction | ≤ 10 mbar (optional 1 bar) | ||
| Differential pressure at opening | ≤ 5 mbar | ||
| Cycles until first Service | 1 Million (unheated and under clean conditions) | ||
| Closing or opening time | ≤ 1.2 s (for opening height 50 mm) ≤ 2.0 s (for opening height 100 mm) |
||
| Temperature | Aluminium Valve Body/Gate | ≤ 120 °C | |
| Stainless Steel Gate (Optional) | ≤ 200 °C | ||
| Actuator | ≤ 80 °C | ||
| Flange to flange dimension | 145 mm for opening height 50 mm 170 mm for opening height 51 mm – 80 mm 190 mm for opening height 81 mm – 100 mm |
||
| Material | Aluminium Valve Body/Gate/Flanges | EN AW-5083 (3.3547) | |
| Stainless Steel Gate (Optional) | AISI 304 (1.4301) | ||
| Seal | Gate, Flanges | FKM (Viton®) | |
| Mounting Position | Valve Actuator |
Horizontal / vertical Sideward, optional: upward / downward |
|
| Position Indicator | Voltage | 10– 30 VDC PNP (NPN optional) | |
