Series

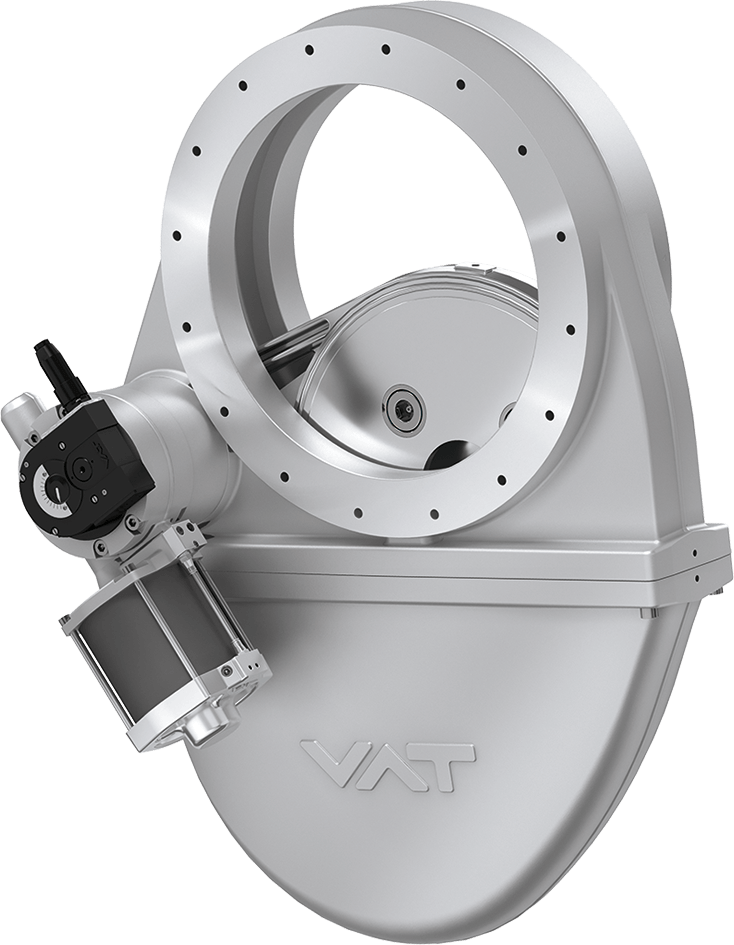

16.8 Large HV Pendulum Isolation Valve

  • 16852-JA44
View dimensions

Series

16.8 Large HV Pendulum Isolation Valve

Article number
16852-JA44
1 × 10-8 mbar to 1.2 bar (abs)

Compact Design for Large Vacuum Flows and Harsh Conditions

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
JIS
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.2 bar (abs)
Conductance
50000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.03 bar
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
2 l
Close open time
12 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Max. temperature solenoid
≤ 50 °C
Weight
85 kg / 187.39 lbs

16.8 Large HV Pendulum Isolation Valve 16852-JA44 3D CAD File

ZIP 2 MB Download

16.8 Large HV Pendulum Isolation Valve 16852-JA44 Product Datasheet

PDF 53 KB Download

16.8 Large HV Pendulum Isolation Valve 16852-JA44 Manual

PDF 610 KB Download

16.8 Large HV Pendulum Isolation Valve 16852-JA44 2D Dimension Drawing

PDF 522 KB Download
