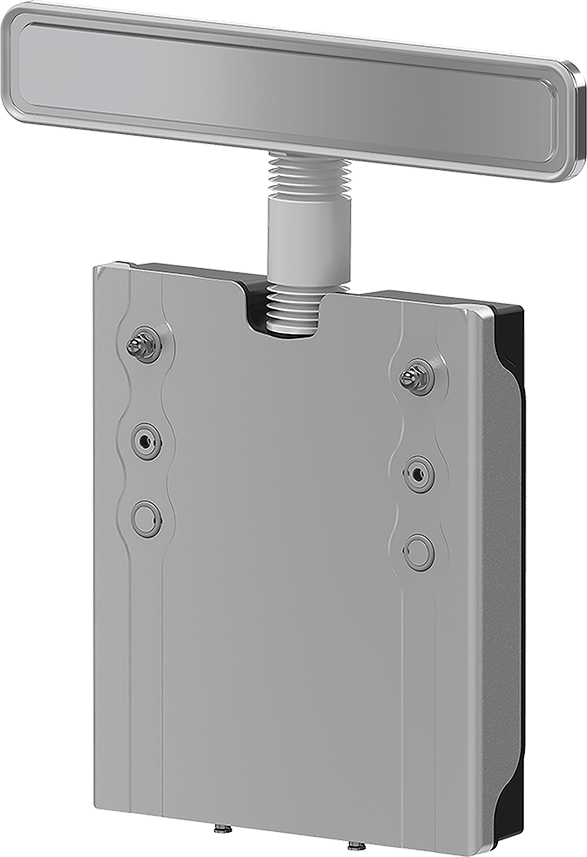

07.0 HV Transfer Door Insert with LINVAT

  • 07012-UA24

Series

07.0 HV Transfer Door Insert with LINVAT

Article number
07012-UA24

High Performance for EFEM and Load Lock Applications

  • Technical data
  • Downloads
Size
50 x 336 mm (1.97" x 13.2")
Flange
Door; perpendicular mounting surfaces
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-9 mbar
Pressure Max.
1.0 bar (abs)
Differential Pressure on Plate
≤ 1 bar
Differential Pressure at opening
≤ 30 mbar
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Heating and Cooling Rate
≤ 40 °C h-1
Close open time
≤ 1.0 sec
Weight
6.35 kg / 14 lbs
Add-Ons for Your Product
Valve
Door
Gate

07.0 HV Transfer Door Insert with LINVAT 07012-UA24 3D CAD File

ZIP 4 MB Download

07.0 HV Transfer Door Insert with LINVAT 07012-UA24 2D Dimension Drawing

PDF 1 MB Download

07.0 HV Transfer Door Insert with LINVAT 07012-UA24 Manual

PDF 468 KB Download

07.0 HV Transfer Door Insert with LINVAT 07012-UA24 Product Datasheet

PDF 102 KB Download
