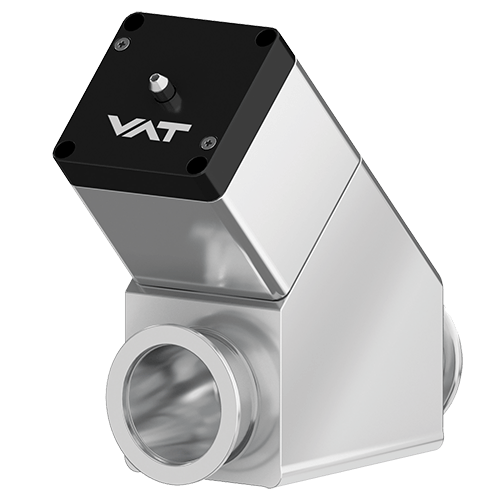

26.5 HV Inline Valve

  • 26538-QA41
View dimensions

Series

26.5 HV Inline Valve

Article number
26538-QA41
1 × 10-8 mbar to 5 bar (abs)

Uncompromised Reliability

  • Technical data
  • Downloads
Size
DN 80 (3")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
200 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.112 l
Close open time
0.7 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Max. temperature solenoid
≤ 80 °C
Weight
3.9 kg / 8.6 lbs

26.5 HV Inline Valve 26538-QA41 3D CAD File

ZIP 1 MB Download

26.5 HV Inline Valve 26538-QA41 2D Dimension Drawing

PDF 242 KB Download

26.5 HV Inline Valve 26538-QA41 Manual

PDF 770 KB Download

26.5 HV Inline Valve 26538-QA41 Product Datasheet

PDF 166 KB Download
