Series

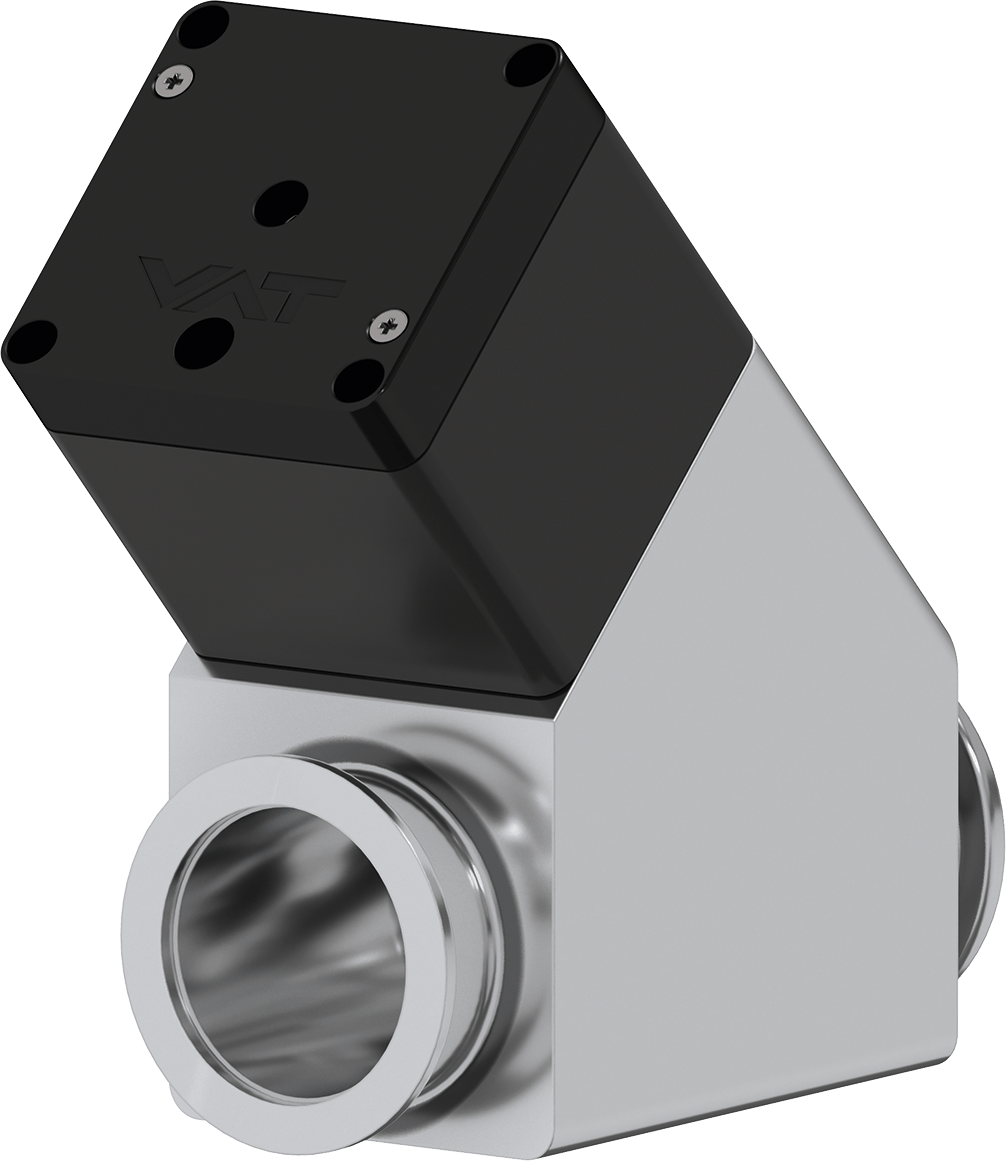

29.1 HV Inline Valve with Soft-Pump Function

  • 29128-KA11

Series

29.1 HV Inline Valve with Soft-Pump Function

Article number
29128-KA11
1 × 10-8 mbar to 1.2 bar (abs)

Pumping, Venting Without Turbulence or Pressure Pulses

  • Technical data
  • Downloads
Size
DN 25 (1")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
80 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.047 l
Closing time
≤ 0.20 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
0.76 kg / 1.68 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

29.1 HV Inline Valve with Soft-Pump Function 29128-KA11 3D CAD File

ZIP 144 KB Download

29.1 HV Inline Valve with Soft-Pump Function 29128-KA11 2D Dimension Drawing

PDF 186 KB Download

29.1 HV Inline Valve with Soft-Pump Function 29128-KA11 Manual

PDF 864 KB Download

29.1 HV Inline Valve with Soft-Pump Function 29128-KA11 Product Datasheet

PDF 28 KB Download
