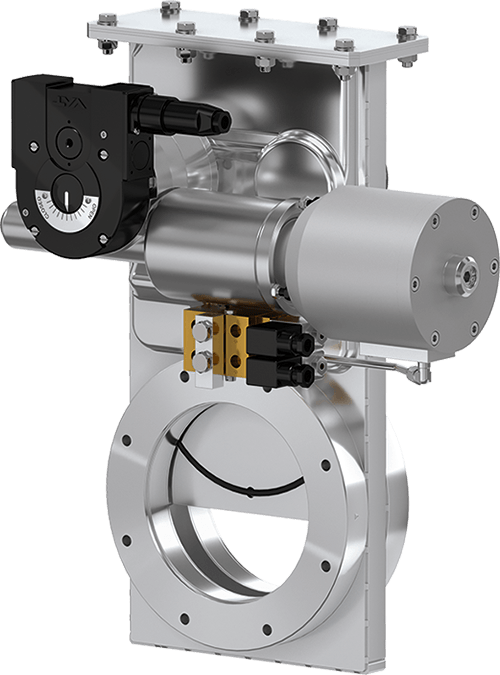

HV Gate Valve - VAT Valves

Size

DN 320 (12")

Flange

JIS

Material

Stainless steel

Actuator

3-position pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 30 mbar

Conductance

32’690 ls-1

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Close open time

≤ 6 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 50 °C

Max. temperature solenoid

≤ 50 °C

Max. temperature position indicator

≤ 80 °C

Weight

119 kg / 261 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Direct mounting option

Additional ports

Intermediate pump port

Gate

Alternative sealing materials

Actuator

Different mounting positons defineable

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Series

14.0 HV Gate Valve

Series

14.0 HV Gate Valve
