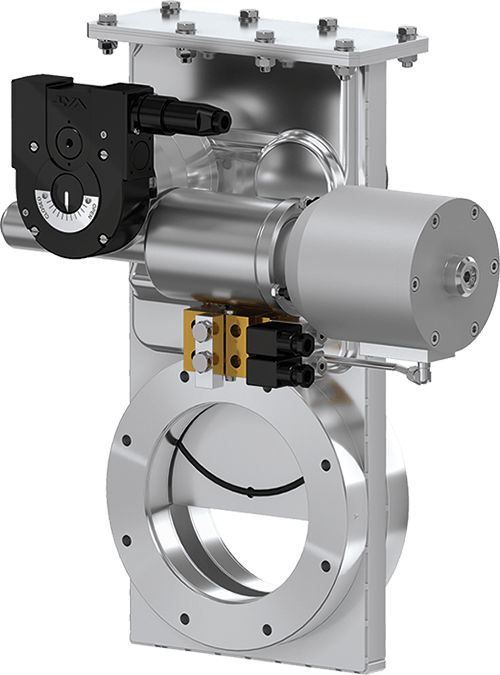

HV Gate Valve - VAT Valves

Size

DN 100 (4")

Flange

CF-C (UNF threads)

Material

Stainless steel

Actuator

3-position pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

2.0 bar (abs)

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 30 mbar

Conductance

1740 ls⁻¹

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Close open time

≤ 2.5 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 50 °C

Max. temperature solenoid

≤ 50 °C

Max. temperature position indicator

≤ 80 °C

Weight

17 kg / 37.48 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Direct mounting option

Additional ports

Intermediate pump port

Gate

Alternative sealing materials

Actuator

Different mounting positons defineable

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Series

14.0 HV Gate Valve

Series

14.0 HV Gate Valve

Add-Ons for Your Product

Valve

Gate

Actuator

Position indicator

Temperature Management

14.0 HV Gate Valve 14040-UE48 3D CAD File

14.0 HV Gate Valve 14040-UE48 2D Dimension Drawing

14.0 HV Gate Valve 14040-UE48 Manual

14.0 HV Gate Valve 14040-UE48 Product Datasheet
