Series

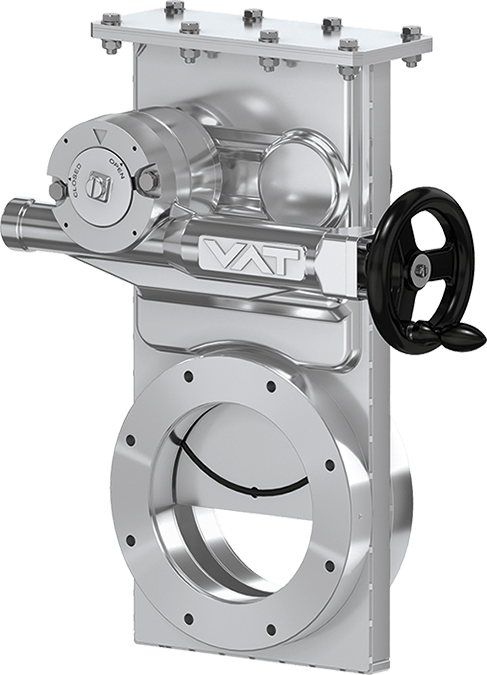

14.0 HV Gate Valve

  • 14036-JE01
View dimensions

Series

14.0 HV Gate Valve

Article number
14036-JE01

For Standard High Cycle Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
JIS
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
440 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.03 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 80 °C
Weight
10 kg / 22.05 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management
Position indicator

14.0 HV Gate Valve 14036-JE01 3D CAD File

ZIP 1 MB Download

14.0 HV Gate Valve 14036-JE01 Manual

PDF 1 MB Download

14.0 HV Gate Valve 14036-JE01 2D Dimension Drawing

PDF 287 KB Download
