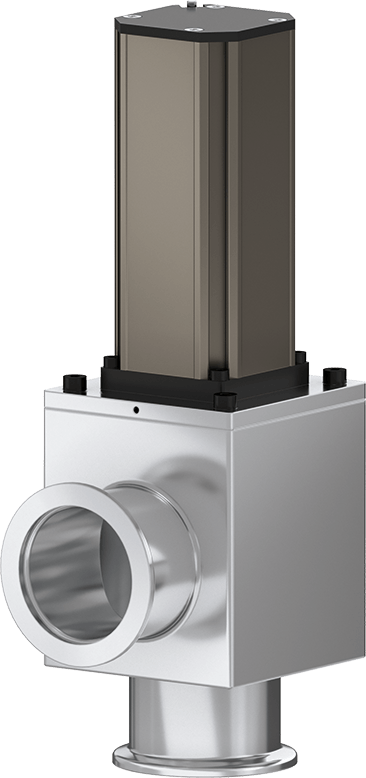

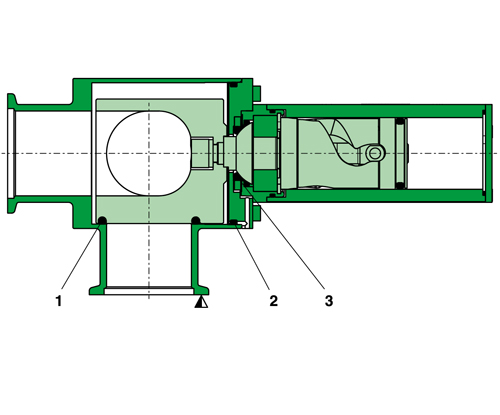

25.0 HV Cylinder Valve (Angle Version)

  • 25032-KA14
View dimensions

Series

25.0 HV Cylinder Valve (Angle Version)

Article number
25032-KA14
1 × 10-8 mbar to 3 bar (abs)

Maximum Conductance for Harsh Process Environments

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
3.0 bar (abs)
Conductance
46 ls⁻¹
Differential Pressure on Plate
≤ 3 bar
Differential Pressure at opening
≤ 1.2 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.032 l
Close open time
0.6 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 120 °C
Weight
1.7 kg / 3.75 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

25.0 HV Cylinder Valve (Angle Version) 25032-KA14 Manual

PDF 521 KB Download

25.0 HV Cylinder Valve (Angle Version) 25032-KA14 3D CAD File

ZIP 154 KB Download

25.0 HV Cylinder Valve (Angle Version) 25032-KA14 Product Datasheet

PDF 83 KB Download

25.0 HV Cylinder Valve (Angle Version) 25032-KA14 2D Dimension Drawing

PDF 143 KB Download
