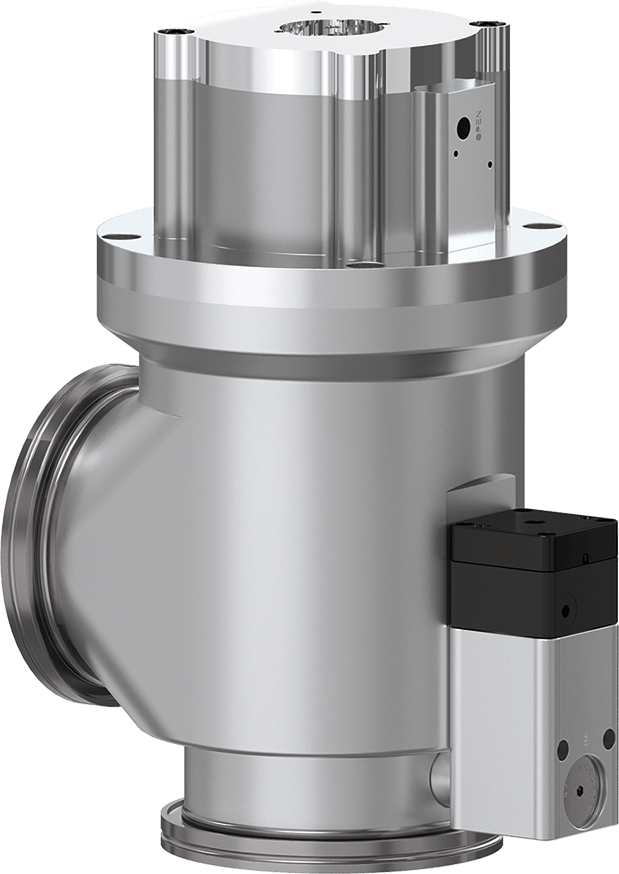

29.2 HV Angle Valve with Soft-Pump Function

  • 29244-QE14
View dimensions

Series

29.2 HV Angle Valve with Soft-Pump Function

Article number
29244-QE14
1 × 10-7 mbar to 2 bar (abs)

Avoids Turbulence or Condensation, Large Conductance Spectrum (DN 100 - 160)

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
2.0 bar (abs)
Conductance
1000 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4.5 bar / 65 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
1.05 l
Close open time
2 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
16 kg / 35.27 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

29.2 HV Angle Valve with Soft-Pump Function 29244-QE14 3D CAD File

ZIP 1 MB Download

29.2 HV Angle Valve with Soft-Pump Function 29244-QE14 2D Dimension Drawing

PDF 225 KB Download

29.2 HV Angle Valve with Soft-Pump Function 29244-QE14 Product Datasheet

PDF 297 KB Download
