Series

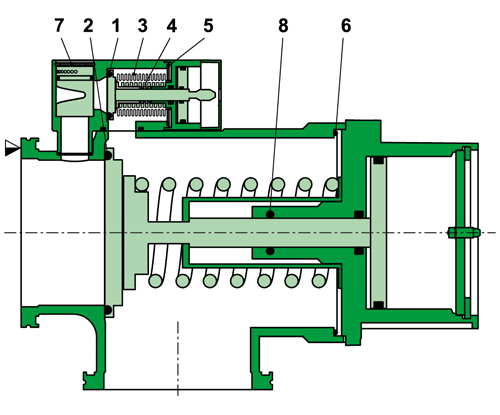

29.2 HV Angle Valve with Soft-Pump Function

View dimensions

Series

29.2 HV Angle Valve with Soft-Pump Function

Article number

29240-QA21

1 × 10^-7 mbar to 2 bar (abs)

Avoids Turbulence or Condensation, Large Conductance Spectrum (DN 100 - 160)

Technical data
Downloads

Size

DN 100 (4")

Flange

ISO-K

Material

Aluminum

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-⁷ mbar

Pressure Max.

2.0 bar (abs)

Conductance

440 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.3 bar

Min. compressed air pressure

4.5 bar / 65 psi

Max. compressed air pressure

12 bar / 174 psi

Cylinder volume

0.33 l

Close open time

1 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature position indicator

≤ 80 °C

Weight

9 kg / 19.84 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Gate

Alternative sealing materials

Actuator

Common connector for position indicator and solenoid

Different solenoid specification

Position indicator

High temperature position indicator
