Series

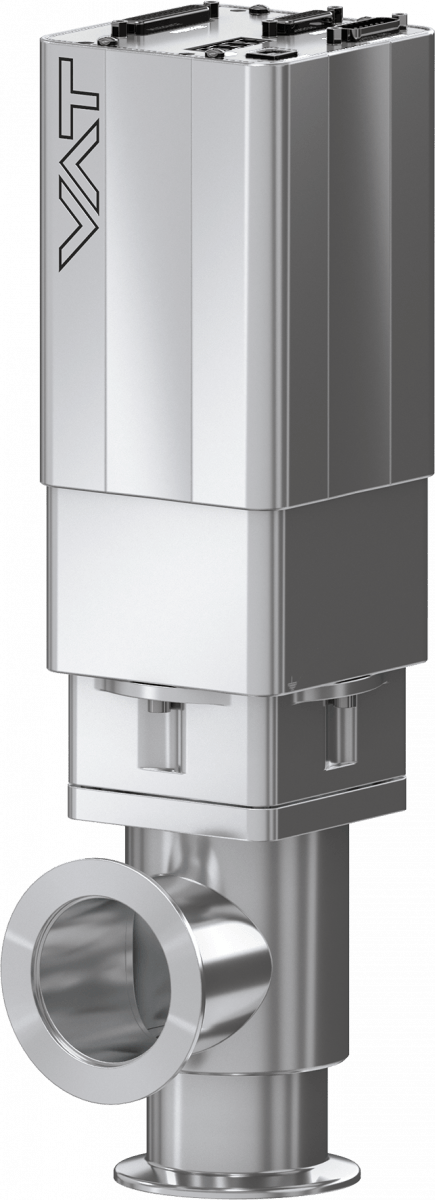

62.0 HV Angle Control Valve

Series

62.0 HV Angle Control Valve

Article number

62034-KEHX-0001

1 × 10^-8 mbar to 1.4 bar (abs)

The High Pressure and High Temperature Solution

Technical data
Downloads

Size

DN 50 (2")

Flange

ISO-KF

Material

Stainless steel

Actuator

Linear drive with closed loop controlled stepper motor

Position Indication Signal

Solenoid

Controller

with Power Failure Option

Interface

EtherCAT

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.4 bar (abs)

Differential Pressure on Plate

≤ 1 bar

Differential Pressure at opening

≤ 1 bar

Conductance

80 ls⁻¹

Max. temperature valve body

≤ 150 °C

Open to close

1.35 s

Close to open

1.0 s

Pressure control (throttling) default speed

1.9 s

Weight

7.8 kg / 17.2 lbs

Controller Configuration

PFO

Controller interface + sensors

EtherCAT / 2 sensors

Add-Ons for Your Product

Gate

Alternative sealing materials
