Series

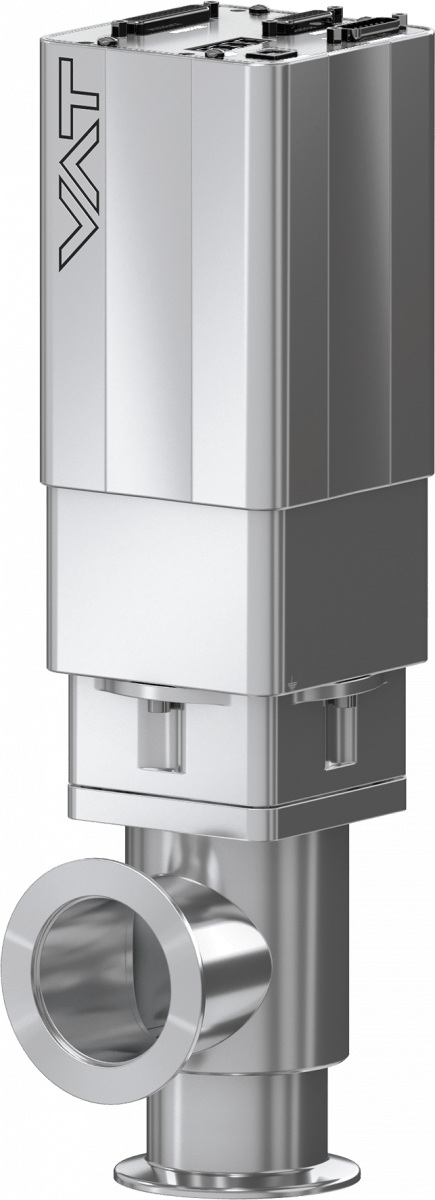

62.0 HV Angle Control Valve

Series

62.0 HV Angle Control Valve

Article number

62034-KAGX-0001

1 × 10^-8 mbar to 1.4 bar (abs)

The High Pressure and High Temperature Solution

Technical data
Downloads

Size

DN 50 (2")

Flange

ISO-KF

Material

Aluminum

Actuator

Linear drive with closed loop controlled stepper motor

Position Indication Signal

Yes

Solenoid

Controller

Basic version

Interface

EtherCAT

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.4 bar (abs)

Differential Pressure on Plate

≤ 1 bar

Differential Pressure at opening

≤ 1 bar

Conductance

80 ls⁻¹

Open to close

1.35 s

Close to open

1.0 s

Pressure control (throttling) default speed

1.9 s

Controller Configuration

Basic Version / Cluster Slave

Controller interface + sensors

EtherCAT / 2 sensors

Weight

5.9 kg / 13.01 lbs
