Series

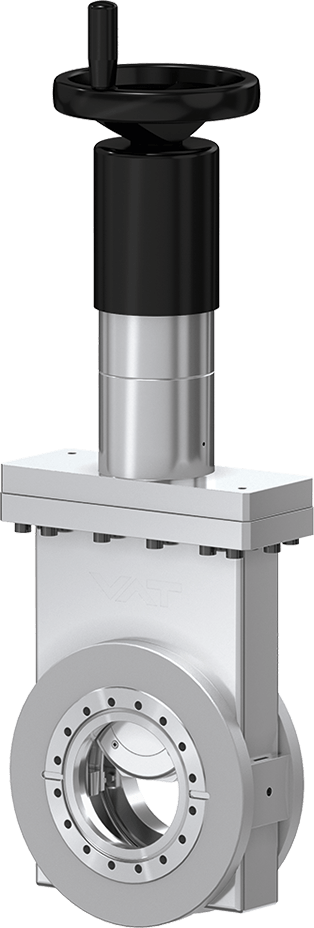

48.2 XHV All-Metal Gate Valve

View dimensions

Series

48.2 XHV All-Metal Gate Valve

Article number

48244-CE08

XHV to 2 bar (abs)

For High Temperature (DN 63, 100, 160)

Technical data
Downloads

Size

DN 160 (6")

Flange

CF-F (metric threads)

Material

Stainless steel

Actuator

Manual

Position Indication Signal

Visual (Mechanical), 80° C

Solenoid

Pressure Min.

XHV

Pressure Max.

2.0 bar (abs)

Conductance

3700 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.5 bar

Max. temperature valve body

≤ 300°C

Max. Temperature Actuator

≤ 140 °C

Max. temperature position indicator

≤ 80 °C (Option: 200 °C)

Weight

36 kg / 79.37 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Customer specified RF aperature

Antimagnetic version

Additional ports

Actuator

Accessory for pneumatic actuator for faster closing

Radiation resistant upto 106 Gy (bakeable max. 140 °C, max. 100h)

Manual actuator bakeable

Position indicator

Double position indicator for "open" and "close"

Increased temperature range
