Series

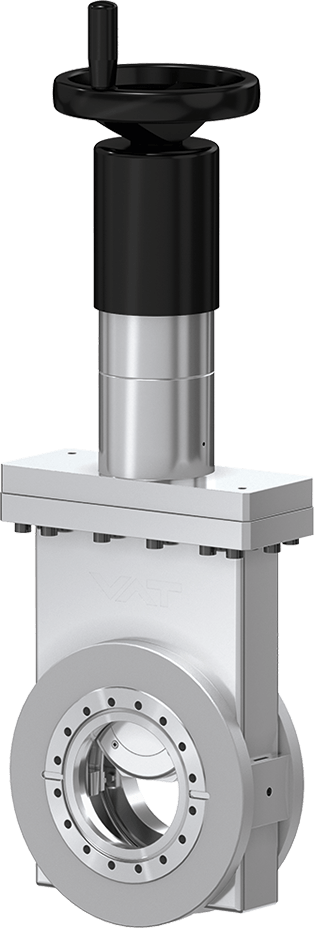

48.2 XHV All-Metal Gate Valve

  • 48240-CE01
View dimensions

Series

48.2 XHV All-Metal Gate Valve

Article number
48240-CE01
XHV to 2 bar (abs)

For High Temperature (DN 63, 100, 160)

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
XHV
Pressure Max.
2.0 bar (abs)
Conductance
1400 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.5 bar
Max. temperature valve body
≤ 300°C
Max. Temperature Actuator
≤ 140 °C
Weight
23.5 kg / 51.81 lbs
Add-Ons for Your Product
Valve
Actuator
Position indicator

48.2 XHV All-Metal Gate Valve 48240-CE01 Product Datasheet

PDF 21 KB Download

48.2 XHV All-Metal Gate Valve 48240-CE01 3D CAD File

ZIP 307 KB Download

48.2 XHV All-Metal Gate Valve 48240-CE01 Manual

PDF 705 KB Download

48.2 XHV All-Metal Gate Valve 48240-CE01 2D Dimension Drawing

PDF 242 KB Download
