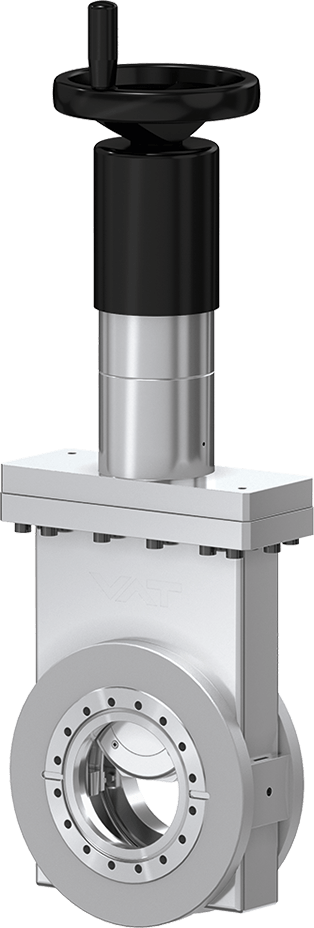

48.2 XHV All-Metal Gate Valve

  • 48236-CE08
View dimensions

Series

48.2 XHV All-Metal Gate Valve

Article number
48236-CE08
XHV to 2 bar (abs)

For High Temperature (DN 63, 100, 160)

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure Min.
XHV
Pressure Max.
2.0 bar (abs)
Conductance
400 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.5 bar
Max. temperature valve body
≤ 300°C
Max. Temperature Actuator
≤ 140 °C
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Weight
16 kg / 35.27 lbs
Add-Ons for Your Product
Valve
Actuator
Position indicator

48.2 XHV All-Metal Gate Valve 48236-CE08 Product Datasheet

PDF 43 KB Download

48.2 XHV All-Metal Gate Valve 48236-CE08 3D CAD File

ZIP 480 KB Download

48.2 XHV All-Metal Gate Valve 48236-CE08 Manual

PDF 680 KB Download

48.2 XHV All-Metal Gate Valve 48236-CE08 2D Dimension Drawing

PDF 256 KB Download
