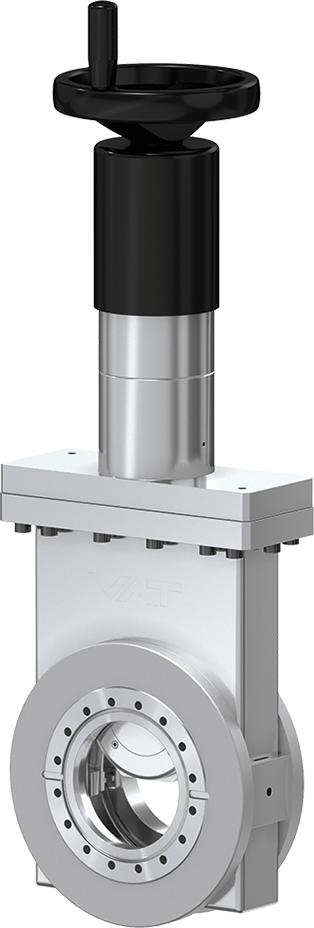

48.1 XHV All-Metal Gate Valve

  • 48124-CE01
View dimensions

Series

48.1 XHV All-Metal Gate Valve

Article number
48124-CE01
XHV to 2 bar (abs)

For High Temperatures (DN 16, 40, 200, 250, 320)

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
XHV
Pressure Max.
2.0 bar (abs)
Conductance
10 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 300°C
Max. Temperature Actuator
≤ 140 °C
Weight
3 kg / 6.61 lbs
Add-Ons for Your Product
Valve
Actuator
Position indicator

48.1 XHV All-Metal Gate Valve 48124-CE01 3D CAD File

ZIP 172 KB Download

48.1 XHV All-Metal Gate Valve 48124-CE01 2D Dimension Drawing

PDF 192 KB Download

48.1 XHV All-Metal Gate Valve 48124-CE01 Manual

PDF 1 MB Download

48.1 XHV All-Metal Gate Valve 48124-CE01 Product Datasheet

PDF 42 KB Download
