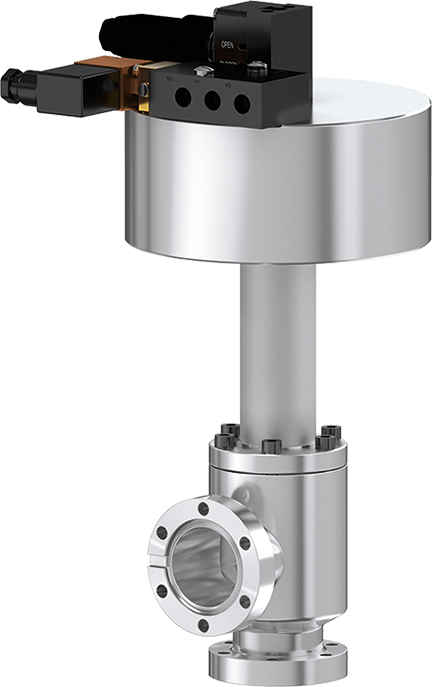

57.0 XHV All-Metal Angle Valve

View dimensions

Series

57.0 XHV All-Metal Angle Valve

Article number

57040-GE44

XHV to 5 bar (abs)

For Extreme Temperature and Radiation Requirements (DN 63 - 160)

Technical data
Downloads

Size

DN 100 (4")

Flange

CF-R (rotatable flange)

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Visual (Mechanical), 80° C

Solenoid

Yes

Pressure Min.

XHV

Pressure Max.

5.0 bar (abs)

Conductance

380 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

5 bar / 73 psi

Cylinder volume

1.5 l

Close open time

4 s

Max. temperature valve body

≤ 350°C

Max. Temperature Actuator

≤ 200 °C

Max. temperature position indicator

≤ 80 °C (Option: 200 °C)

Weight

26.5 kg / 58.42 lbs
