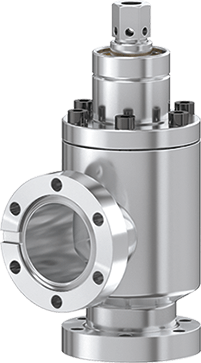

57.0 XHV All-Metal Angle Valve

  • 57040-GE02
View dimensions

Series

57.0 XHV All-Metal Angle Valve

Article number
57040-GE02
XHV to 5 bar (abs)

For Extreme Temperature and Radiation Requirements (DN 63 - 160)

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
XHV
Pressure Max.
5.0 bar (abs)
Conductance
380 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 350°C
Max. Temperature Actuator
≤ 300 °C
Weight
16 kg / 35.27 lbs
Add-Ons for Your Product
Valve
Actuator
Position indicator

57.0 XHV All-Metal Angle Valve 57040-GE02 Manual

PDF 1 MB Download

57.0 XHV All-Metal Angle Valve 57040-GE02 3D CAD File

ZIP 146 KB Download

57.0 XHV All-Metal Angle Valve 57040-GE02 Product Datasheet

PDF 30 KB Download

57.0 XHV All-Metal Angle Valve 57040-GE02 2D Dimension Drawing

PDF 206 KB Download
