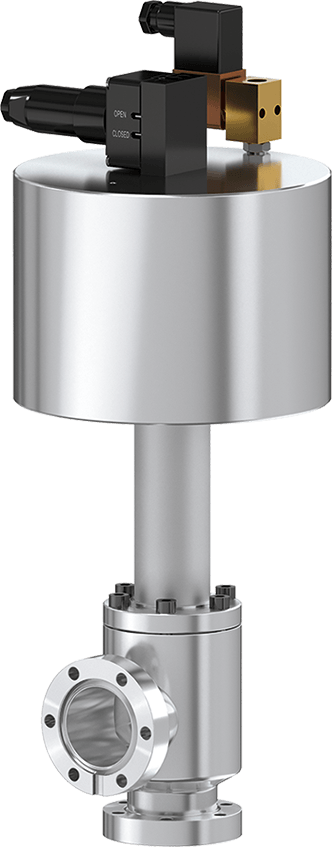

57.0 XHV All-Metal Angle Valve

View dimensions

Series

57.0 XHV All-Metal Angle Valve

Article number

57036-GE11

XHV to 5 bar (abs)

For Extreme Temperature and Radiation Requirements (DN 63 - 160)

Technical data
Downloads

Size

DN 63 (2 ½")

Flange

CF-R (rotatable flange)

Material

Stainless steel

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Solenoid

Pressure Min.

XHV

Pressure Max.

5.0 bar (abs)

Conductance

125 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

6 bar / 87 psi

Max. compressed air pressure

9 bar / 131 psi

Cylinder volume

0.8 l

Close open time

4 s

Max. temperature valve body

≤ 350°C

Max. Temperature Actuator

≤ 150 °C

Weight

8 kg / 17.64 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Antimagnetic version

Valve without bonnet seal, welded

T-valve

Actuator

Different solenoid specification

Radiation resistant upto 106 Gy (bakeable max. 140 °C, max. 100h)

Position indicator

Double position indicator for "open" and "close"

Increased temperature range
