Series

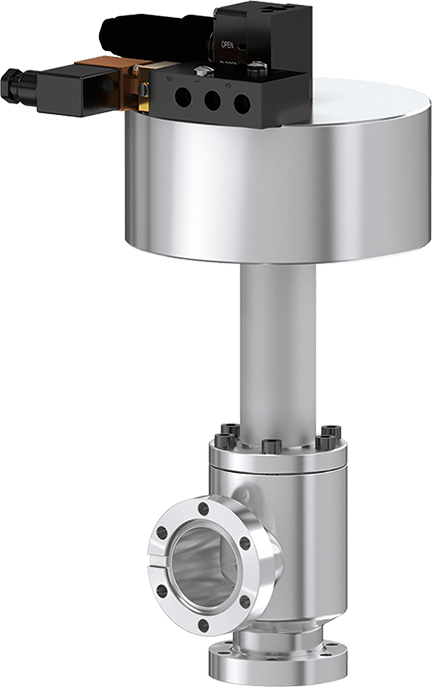

57.1 XHV All-Metal Angle valve

View dimensions

Series

57.1 XHV All-Metal Angle valve

Article number

57132-GE14

XHV to 5 bar (abs)

For Extreme Temperature and Radiation Requirements (DN 10 - 40)

Technical data
Downloads

Size

DN 40 (1 ½")

Flange

CF-R (rotatable flange)

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Solenoid

Pressure Min.

XHV

Pressure Max.

5.0 bar (abs)

Conductance

50 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

5 bar / 73 psi

Cylinder volume

0.32 l

Max. temperature valve body

≤ 350°C

Max. Temperature Actuator

≤ 200 °C

Weight

6 kg / 13.23 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Antimagnetic version

Valve without bonnet seal, welded

T-valve

Actuator

Different solenoid specification

Radiation resistant upto 106 Gy (bakeable max. 140 °C, max. 100h)

Position indicator

Double position indicator for "open" and "close"

Increased temperature range
