Series

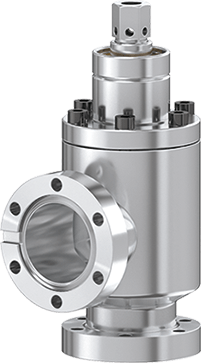

57.1 XHV All-Metal Angle valve

  • 57132-GE02
View dimensions

Series

57.1 XHV All-Metal Angle valve

Article number
57132-GE02
XHV to 5 bar (abs)

For Extreme Temperature and Radiation Requirements (DN 10 - 40)

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
XHV
Pressure Max.
5.0 bar (abs)
Conductance
50 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 350°C
Max. Temperature Actuator
≤ 350 °C
Weight
2.3 kg / 5.07 lbs
Separated Actuator
Hexagon head
Add-Ons for Your Product
Valve
Actuator
Position indicator

57.1 XHV All-Metal Angle valve 57132-GE02 3D CAD File

ZIP 172 KB Download

57.1 XHV All-Metal Angle valve 57132-GE02 Product Datasheet

PDF 49 KB Download

57.1 XHV All-Metal Angle valve 57132-GE02 Manual

PDF 1 MB Download

57.1 XHV All-Metal Angle valve 57132-GE02 2D Dimension Drawing

PDF 169 KB Download
