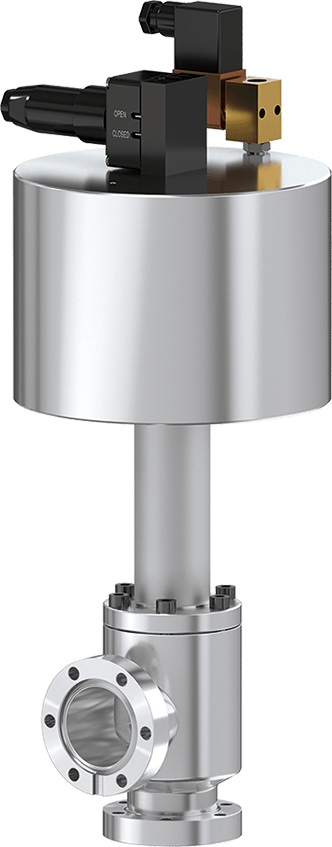

57.1 XHV All-Metal Angle valve

  • 57120-XE21
View dimensions

Series

57.1 XHV All-Metal Angle valve

Article number
57120-XE21
XHV to 5 bar (abs)

For Extreme Temperature and Radiation Requirements (DN 10 - 40)

  • Technical data
  • Downloads
Size
DN 10 (⅜")
Flange
Special
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure Min.
XHV
Pressure Max.
5.0 bar (abs)
Conductance
1.5 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Min. compressed air pressure
6 bar / 87 psi
Max. compressed air pressure
16 bar / 232 psi
Cylinder volume
0.061 l
Max. temperature valve body
≤ 250 °C
Max. Temperature Actuator
≤ 150 °C
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Add-Ons for Your Product
Valve
Actuator
Position indicator

57.1 XHV All-Metal Angle valve 57120-XE21 3D CAD File

ZIP 164 KB Download

57.1 XHV All-Metal Angle valve 57120-XE21 2D Dimension Drawing

PDF 112 KB Download

57.1 XHV All-Metal Angle valve 57120-XE21 Manual

PDF 292 KB Download
