Series

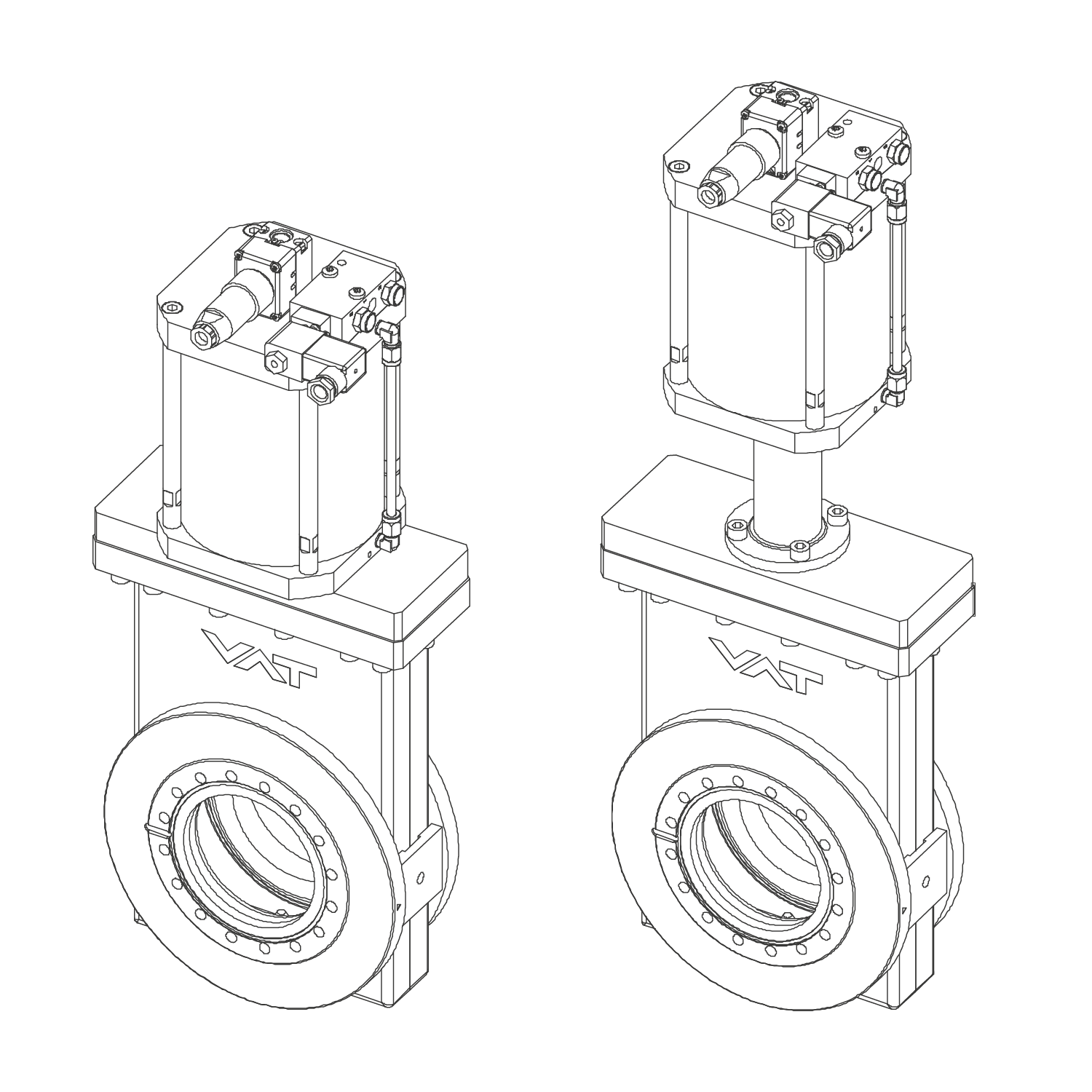

ITER Type 2 UHV All-Metal Gate Valve

  • 48146-RE24-ARL1

Series

ITER Type 2 UHV All-Metal Gate Valve

Article number
48146-RE24-ARL1

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
Weld neck
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
XUHV
Pressure Max.
2.0 bar (abs)
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Conductance
1.8 ls⁻¹
Cycles until first service
Normal Conditions
20 000
Extreme Conditions
1 000
Bake-Out Temperature
Valve Body
≤ 240 °C
Bake-Out Temperature
≤ 140 °C (for max. 100h)
Bake-Out Temperature
≤ 200 °C
Heating and Cooling Rate
≤ 10 °C h-1
Seal
Seal
Metal, Silver Plated
Seal
Metal, Silver Plated
Seal
EPDM
Mounting Position
Any
Radiation Resistance
Valve Body
108 Gy (1010 rad)
Radiation Resistance
106 Gy (108 rad)
Radiation Resistance
106 Gy (108 rad)
Maximum magnetic field levels
≤ 150 mT
Close open time
≤ 15.0 sec
Weight
96.3 kg / 212.3 lbs

ITER Type 2 UHV All-Metal Gate Valve 48146-RE24-ARL1 3D CAD File

ZIP 357 KB Download

ITER Type 2 UHV All-Metal Gate Valve 48146-RE24-ARL1 2D Dimension Drawing

PDF 439 KB Download

ITER Type 2 UHV All-Metal Gate Valve 48146-RE24-ARL1 Manual

PDF 452 KB Download

ITER Type 2 UHV All-Metal Gate Valve 48146-RE24-ARL1 Product Datasheet

PDF 50 KB Download
