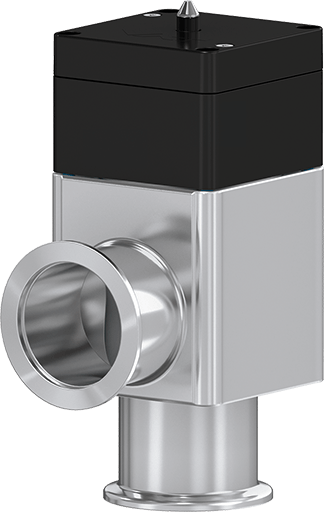

24.4 Angle Valve

Article number
24434-KA21
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
80 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Cylinder volume
0.047 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.65 s
Weight
1.7 kg / 3.75 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
