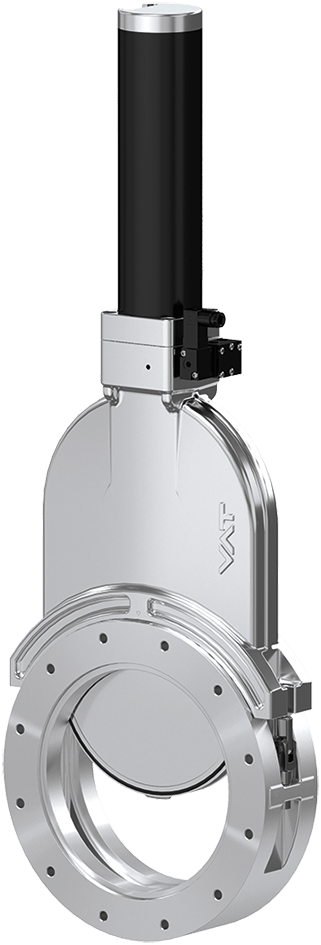

12.1 Gate Valve

  • 12136-JA24
View dimensions

Series

12.1 Gate Valve

Article number
12136-JA24
1 × 10-7 mbar to 1.6 bar (abs)

The Standard for Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
JIS
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.6 bar (abs)
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Conductance
550 ls⁻¹
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
2.8 l
Close open time
1.5 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
3.6 kg / 7.94 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

12.1 Gate Valve 12136-JA24 3D CAD File

ZIP 612 KB Download

12.1 Gate Valve 12136-JA24 2D Dimension Drawing

PDF 273 KB Download

12.1 Gate Valve 12136-JA24 Manual

PDF 538 KB Download

12.1 Gate Valve 12136-JA24 Product Datasheet

PDF 39 KB Download
