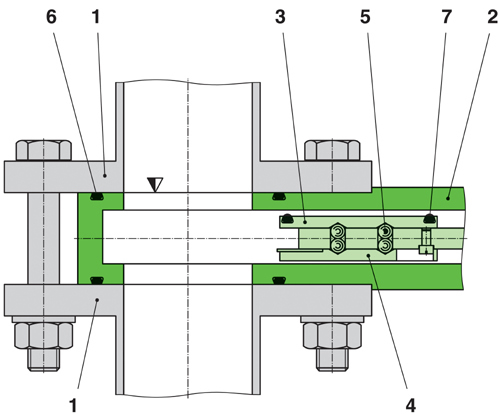

08.1 Insertable Gate Valve

  • 08136-FA24
View dimensions

Series

08.1 Insertable Gate Valve

Article number
08136-FA24
1 × 10-7 mbar to 1.6 bar (abs)

Where Installation Space is Limited (DN 63 - 100)

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
Flat flanges with O-ring grooves
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.6 bar (abs)
Conductance
1000 ls⁻¹
Close open time
1.5 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
2.3 kg / 5.07 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

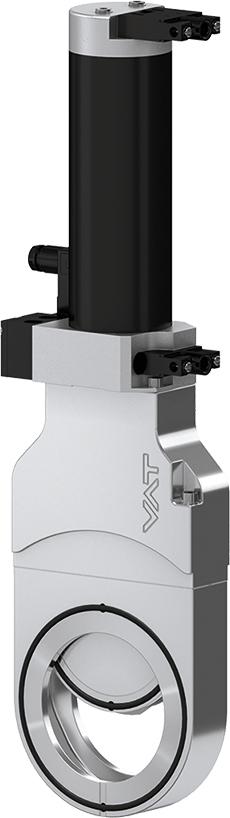

08.1 Insertable Gate Valve 08136-FA24 3D CAD File

ZIP 482 KB Download

08.1 Insertable Gate Valve 08136-FA24 Product Datasheet

PDF 114 KB Download

08.1 Insertable Gate Valve 08136-FA24 Manual

PDF 329 KB Download

08.1 Insertable Gate Valve 08136-FA24 2D Dimension Drawing

PDF 275 KB Download
