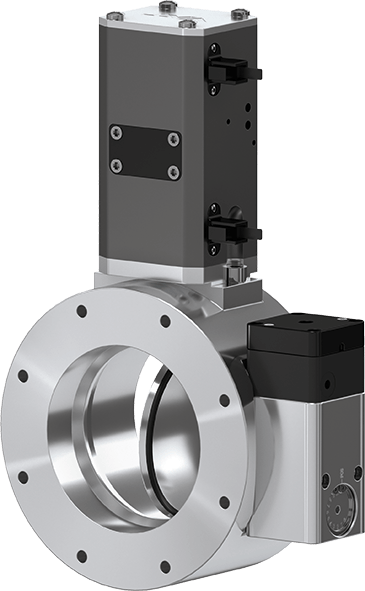

20.4 VATTERFLY Valve

  • 20444-PE34
View dimensions

Series

20.4 VATTERFLY Valve

Article number
20444-PE34
1 × 10-8 mbar to 2 bar (abs)

Reliable Isolation in Contaminating and Aggressive Vacuum Processes (Extended Body Version)

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Solenoid
Yes
Position Indication Signal
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
2550 ls⁻¹
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.5 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.13 l
Close open time
1.4 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature solenoid
≤ 50 °C
Weight
22.3 kg / 49.16 lbs
Add-Ons for Your Product
Valve
Actuator
Soft-Pump Function

20.4 VATTERFLY Valve 20444-PE34 3D CAD File

ZIP 416 KB Download

20.4 VATTERFLY Valve 20444-PE34 2D Dimension Drawing

PDF 133 KB Download

20.4 VATTERFLY Valve 20444-PE34 Product Datasheet

PDF 47 KB Download

20.4 VATTERFLY Valve 20444-PE34 Manual

PDF 831 KB Download
