UHV Gate Valve - VAT Valves

Size

DN 250 (10")

Flange

JIS

Material

Stainless steel

Actuator

Manual

Position Indication Signal

Yes

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

1.2 bar (abs)

Conductance

21690 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 0.03 bar

Max. temperature valve body

≤ 250 °C

Max. Temperature Actuator

≤ 250 °C

Max. temperature position indicator

≤ 80 °C

Weight

50 kg / 110.23 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Compact version

Gate

O-ring seal

With fixations for orifices

With window

With fixations for foils

Alternative sealing materials

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Increased bake-out temperature on manual actuator up to 250 °C

Increased bake-out temperature on pneumatic actuator up to 200 °C

Actuator

Different solenoid specification

Series

10.8 UHV Gate Valve

Series

10.8 UHV Gate Valve

Add-Ons for Your Product

Valve

Gate

Position indicator

Temperature Management

Actuator

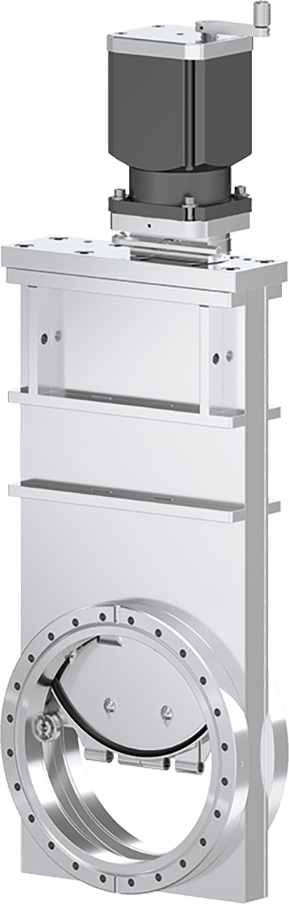

10.8 UHV Gate Valve 10848-JE08 3D CAD File

10.8 UHV Gate Valve 10848-JE08 2D Dimension Drawing

10.8 UHV Gate Valve 10848-JE08 Product Datasheet

10.8 UHV Gate Valve 10848-JE08 Manual

Scroll to:

Scroll to:

Spare Parts
