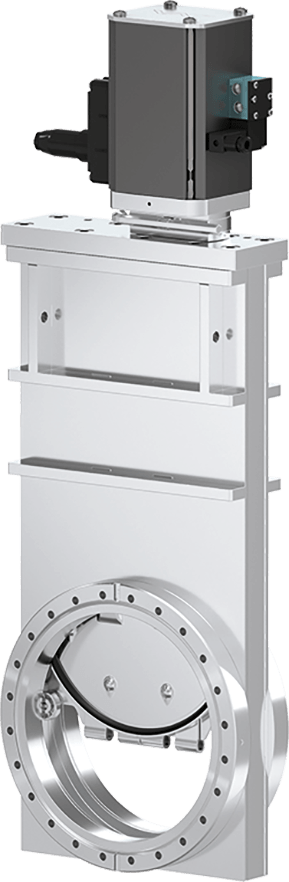

UHV Gate Valve - VAT Valves

Size

DN 160 (6")

Flange

ISO-F

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

1.6 bar (abs)

Conductance

5880 ls⁻¹

Differential Pressure on Plate

≤ 1.6 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.14 l

Close open time

1.5 s

Max. temperature valve body

≤ 250 °C

Max. Temperature Actuator

≤ 200 °C

Max. temperature position indicator

≤ 80 °C

Weight

19.4 kg / 42.8 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Compact version

Gate

O-ring seal

With window

With fixations for orifices

With fixations for foils

Alternative sealing materials

Actuator

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Increased bake-out temperature on manual actuator up to 250 °C

Increased bake-out temp. (solenoid valve & pos. indicator) of pneumatic actuator ≤200 °C
