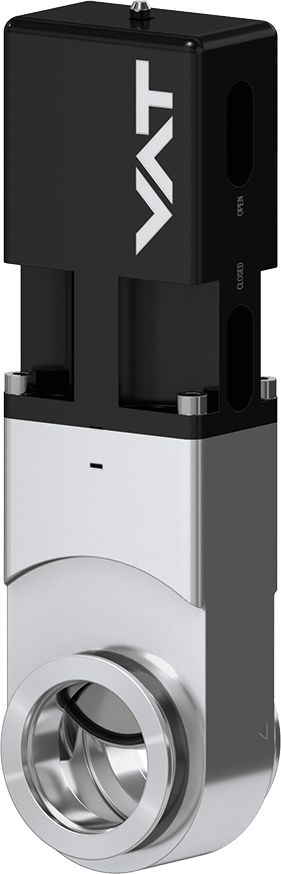

01.2 Mini Gate Valve

  • 01234-KA24
View dimensions

Series

01.2 Mini Gate Valve

Article number
01234-KA24
1 × 10-7 mbar to 1 bar (abs)

The General Purpose Isolation Valve

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Aluminum
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
2.0 bar (abs)
Conductance
260 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.03 bar
Min. compressed air pressure
4.5 bar / 65 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.07 l
Close open time
1.3 s
Max. temperature valve body
≤ 100 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
1.2 kg / 2.65 lbs
Separated Actuator
Pneumatic actuator
Add-Ons for Your Product
Valve
Actuator

01.2 Mini Gate Valve 01234-KA24 3D CAD File

ZIP 288 KB Download

01.2 Mini Gate Valve 01234-KA24 Product Datasheet

PDF 111 KB Download

01.2 Mini Gate Valve 01234-KA24 Manual

PDF 518 KB Download

01.2 Mini Gate Valve 01234-KA24 2D Dimension Drawing

PDF 204 KB Download
