Series

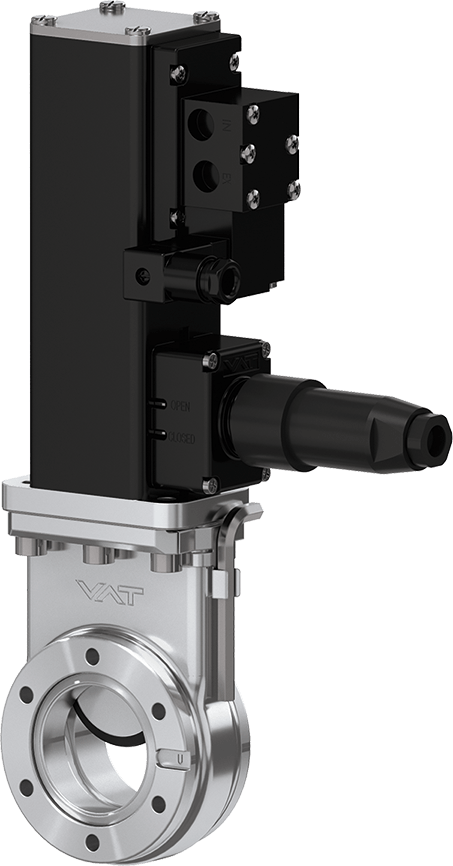

01.0 Mini UHV Gate Valve

  • 01032-CE14

Series

01.0 Mini UHV Gate Valve

Article number
01032-CE14
1 × 10-10 mbar to 2 bar (abs)

The General Purpose Isolation Valve for Demanding Applications

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-10 mbar
Pressure Max.
2.0 bar (abs)
Conductance
220 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.03 bar
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.06 l
Close open time
0.7 s
Max. temperature valve body
≤ 250 °C
Max. Temperature Actuator
≤ 200 °C
Max. temperature position indicator
≤ 80 °C
Weight
2.2 kg / 4.85 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

01.0 Mini UHV Gate Valve 01032-CE14 Product Datasheet

PDF 19 KB Download

01.0 Mini UHV Gate Valve 01032-CE14 Manual

PDF 590 KB Download

01.0 Mini UHV Gate Valve 01032-CE14 3D CAD File

ZIP 267 KB Download

01.0 Mini UHV Gate Valve 01032-CE14 2D Dimension Drawing

PDF 198 KB Download
