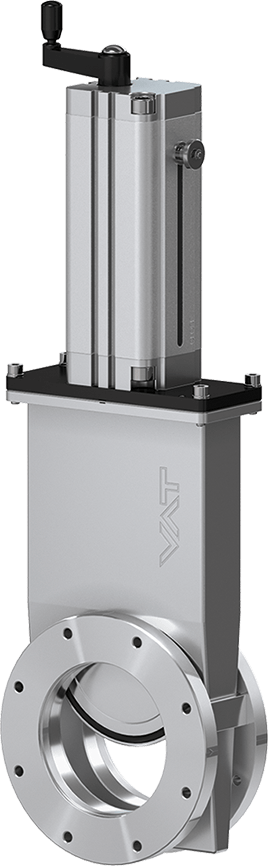

09.1 HV Gate Valve with Wedge Design

  • 09140-JE08
View dimensions

Series

09.1 HV Gate Valve with Wedge Design

Article number
09140-JE08
1 × 10-8 mbar to 1.2 bar (abs)

The flexible Solution for Isolation of Gas-Streams with High By-Product Content

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
JIS
Material
Stainless steel
Actuator
Manual
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
1700 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 100 °C
Max. temperature position indicator
≤ 60 °C
Weight
8.1 kg / 17.86 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

09.1 HV Gate Valve with Wedge Design 09140-JE08 3D CAD File

ZIP 457 KB Download

09.1 HV Gate Valve with Wedge Design 09140-JE08 2D Dimension Drawing

PDF 229 KB Download

09.1 HV Gate Valve with Wedge Design 09140-JE08 Manual

PDF 47 KB Download

09.1 HV Gate Valve with Wedge Design 09140-JE08 Product Datasheet

PDF 208 KB Download
